VGA Video + Audio Matrix Switch: 4x4 Click to Zoom

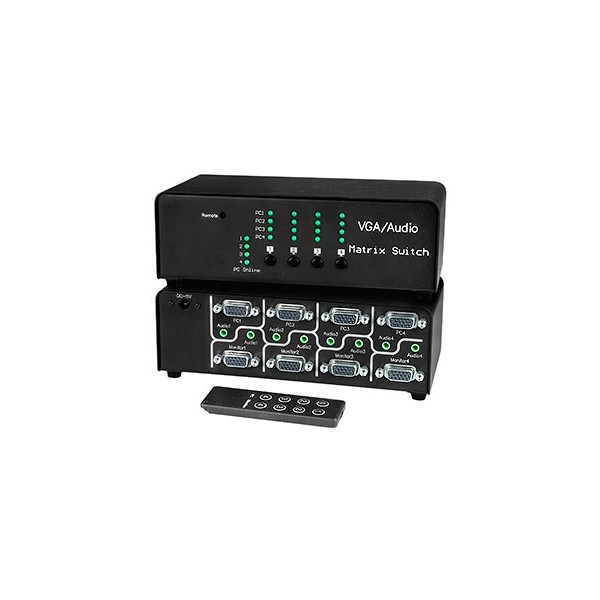

VGA Video + Audio Matrix Switch: 4x4

Switch VGA video & stereo audio from four computers among four monitors & speakers.

More details

MTX-4X4-15VA

$275.00

Overview

The MTX-4X4-15VA Audio/Video Matrix Switch routes audio and video signals from many computers to multiple displays (projectors, monitors, etc.) and speakers.

  • Control the switch through front panel buttons or Infrared remote control
  • Audible beep indicates port change
  • Supports 1600x1024 video resolution at a refresh rate of 60 Hz.
  • Each output provides one video signal and one stereo audio signal
  • Each input can be independently connected to any or all outputs
  • Cascade two switches to increase inputs and outputs.

Specifications

  • Video Input
    • Compatible with computers with VGA outputs
    • Four female 15-pin HD connectors
  • Video Output
    • Four female 15-pin HD connectors
    • Supports 1600x1024 video resolution at a refresh rate of 60 Hz
  • Audio Input
    • Four 3.5mm stereo audio jacks
  • Audio Output
    • Two 3.5mm stereo audio jacks
    • Drives headphones or powered speakers
    • When switching ports, audio mutes until video has been synchronized
  • Control Methods
    • Front panel buttons with LEDs to indicate port selection
    • IR remote control for easy port selection
  • Power
    • 110 or 240 VAC at 50 or 60 Hz via US AC adapter (included).
    • Optional universal power plug adapters available (not included).
  • Dimensions
    • WxDxH (in): 7.1x3.5x2.5
    • Weight: 1.5 lbs
  • Package Includes
    • VGA Video + Audio Matrix Switch
    • 8-button mini IR Remote with CR1220 Li Battery
    • AC power adapter (US)
    • User manual

Diagram

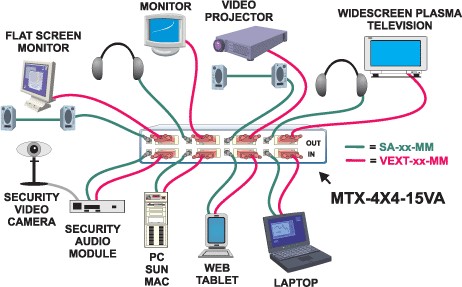

    Application Drawing
