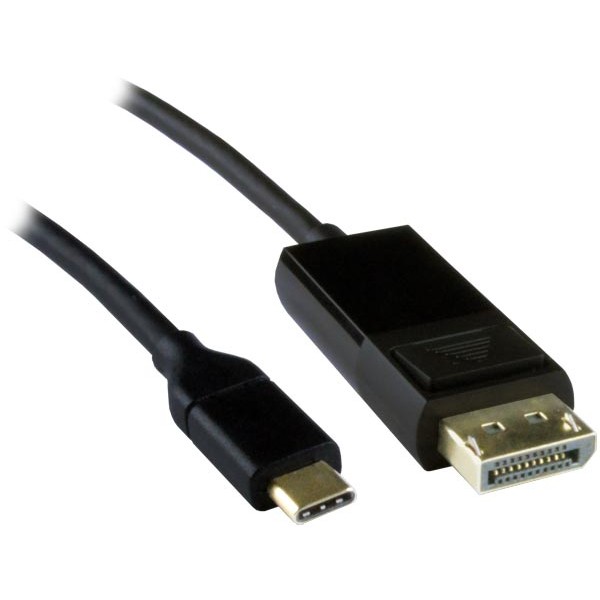

USB 3.0 Type C Male to 4K DisplayPort Male Adapter Cable
Connect a computer, tablet, or smartphone with USB Type C connector directly to an Ultra-HD 4Kx2K DisplayPort monitor or projector.
Products
- Adapters
- Audio/Video
- Cables
-
CAT5/5e/6/6a/7/8
- CATx Cables
- RJ45 Plugs
- RJ11 Plugs
- CATx Keystone Jacks
- Locking CAT6 Keystone Jacks, Inline Couplers, & Mount Boxes
- Premium RJ45 Plugs
- RJ45 Connector Covers
- RJ45 Strain Relief Boots
- Cable Testers
- RJ45 Adapters & Couplers
- Patch Panels
- Keystone Wallplates
- Surface Mount Boxes
- Network Cable Tools
- Waterproof CAT5e/6 RJ45 Connectors & Cables
- Connectors
- Fiber Optics
- FireWire
- HDMI
- KVM
- Network Devices
- Power Products
- Security, Sensors
- Surge Protectors
- Telephony
- Tools & Test Equipment
- USB
- Wallplates
-
Waterproof/Weatherproof
- Waterproof CAT5e/6 RJ45 Connectors & Cables
- Fiber Optic Connectors
- USB Waterproof Connectors
- Waterproof HDMI Connectors & Cables
- Waterproof DisplayPort Connectors & Cables
- Waterproof BNC Connectors & Baluns
- VGA Connectors
- M12 Circular Industrial Connectors
- Cable Glands
- Waterproof Network Devices
- Panel Mount LED Indicators
- Cases
- Clearance
- Custom Cables & Connectors
Information
Click to Zoom
Overview
The USB 3.0 Type C Male to 4K DisplayPort Male Adapter Cable connects a computer, tablet, or smartphone with USB Type C connector directly to an Ultra-HD 4Kx2K DisplayPort monitor or projector. The adapter cable can also be used to connect a mobile device to a laptop.
- Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz, and HDTV resolutions to 1080p @144Hz.
- Compatible with USB 3.0 Type C devices (computer, tablet, or smartphone) with DP Alt Mode or Thunderbolt 3.
- For Multi-Stream Transport (MST), USB-C port must support DisplayPort Alternate Mode.
- Compliant with USB 3.0 SuperSpeed specifications.
- Supports per lane data rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR).
- Mirrors the display from the connected laptop, tablet, or smartphone.
- HDCP compliant.
- Supports EDID pass-through.
- Supports Plug-n-Play specification.
- No drivers required.
- Latching DisplayPort connector for secure fit.
- Gold-plated connectors for smooth, corrosion-free connections.
- Available lengths: 3/6/10 feet.
Specifications
-
- Connectors: male USB 3.0 Type C to male DisplayPort.
- Compatible with USB 3.0 Type C devices (computer, tablet, or smartphone) with DP Alt Mode or Thunderbolt 3.
- Multiplatform support: Windows 7/8/8.1/10, MAC OS 10/11, and Android 9 and higher.
- For Multi-Stream Transport (MST), USB-C port must support DisplayPort Alternate Mode.
- Resolutions: supports Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz, and HDTV resolutions to 1080p (1920x1080@144Hz).
- Supports per lane data rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR).
- Supports HDCP.
- Jacket: PVC
- Color: black
- Outside diameter: 0.17 in (4.2 mm)
- Environmental
- Operating temperature: 32 to 113°F (0 to 45°C)
- Storage temperature: 14 to 158°F (-10 to 70°C)
- Operating relative humidity: 10 to 85% non-condensing RH.
- Storage relative humidity: 5 to 90% non-condensing RH.
- Regulatory Approvals
- RoHS
Downloads
-
USB Type C Video Cables
Data Sheet
Buy
| VPI Part Number | Length | Price | Quote | Buy |
|---|---|---|---|---|
| USB3C-DP4K-3-MM | 3 ft | $18.00 | ||
| USB3C-DP4K-6-MM | 6 ft | $20.25 | ||
| USB3C-DP4K-10-MM | 10 ft | $24.00 |
