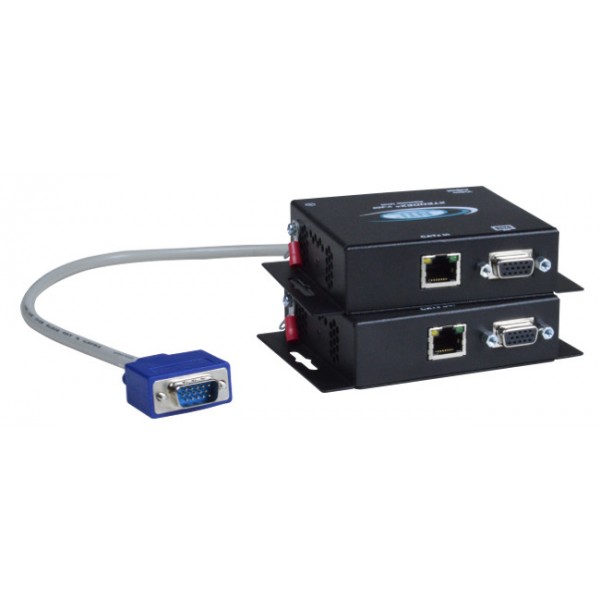

VGA Extender via CAT5 cable, 300' Click to Zoom

VGA Extender via CAT5 cable, 300'

Transmits VGA video locally and remotely up to 300 feet using CAT5 cable.

More details

ST-C5V-300

$210.00

Overview

The VGA Extender transmits VGA video up to 300 feet away from a computer using CAT5/5e/6/6a cable. Each video extender consists of a local unit that connects to a computer and also supplies video to a local monitor, and a remote unit that connects to a monitor.

  • Supports local and remote VGA monitors.
  • Supports resolutions to 1920x1440.
  • Sharpest and clearest VGA quality over CAT5 of any manufacturer.
  • Built-in surge protection.
  • Integrated mounting brackets for easy surface/wall mounting.
  • Use in-house CAT5/5e/6/6a phone wiring to locate a monitor remotely.

Specifications

  • Local Unit
    • Host Connection
      • Supports a PC, SUN, MAC or NTI switch with VGA video.
      • Multiplatform support: Windows 2000/XP/Vista/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
      • Male 15-pin HD connector for computer connection.
    • Local Access
      • Crisp and clear 1920x1440 video resolution.
      • Female 15-pin HD connector for local VGA monitor.
  • Remote Unit
    • Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.
    • Female 15-pin HD connector.
  • Video Quality Adjustment
    • Video quality adjustment for different lengths of CAT5/5e/6/6a cable is done manually.
  • MTBF
    • Local unit: 92,988 hours.
    • Remote unit: 80,275 hours.
  • Power
    • Local unit: 110 or 220 VAC at 50 or 60 Hz via AC adapter (included).
    • Remote unit: powered from local unit via CAT5/5e/6/6a cable.
    • Power Consumption: Local unit: 10 W; Remote unit: powered from local unit
  • Dimensions
    • WxDxH: 3.5x3.1x1.2 in (89x79x30 mm)
  • Environmental
    • Operating temperature: 32 to 100°F (0 to 38°C).
    • Storage temperature: -20 to 140°F (-30 to 60°C).
    • Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.
  • Regulatory Approvals
    • CE, RoHS.
  • Cables
    • Use CAT5/5e/6/6a straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
  • Cable Distances & Resolutions
      ST-C5KVM-300 Distances and Resolutions for CAT5/CAT5e/CAT6/CAT6a cables
      Cable Distance Maximum Resolution
      CAT5/5e
      Solid UTP
      300 feet
      (91 meters)
      1280x1024 at 60 Hz
      150 feet
      (46 meters)
      1600x1200 at 60 Hz
      100 feet
      (30 meters)
      1920x1440 at 60 Hz
      CAT5/5e
      Solid STP,
      CAT6
      Solid UTP
      300 feet
      (91 meters)
      1024x768 at 60 Hz
      150 feet
      (46 meters)
      1280x1024 at 60 Hz
      100 feet
      (30 meters)
      1600x1200 at 60 Hz
      CAT6a
      Solid UTP
      300 feet
      (91 meters)
      1024x768 at 60 Hz
      150 feet
      (46 meters)
      1280x1024 at 60 Hz
      100 feet
      (30 meters)
      1920x1200 at 60 Hz
      Note: CAT6/6a cable has a higher skew than CAT5/5e cable, which causes colors to smear. Since these extenders do not have internal skew compensation, they work at shorter distances with CAT6/6a cable.
