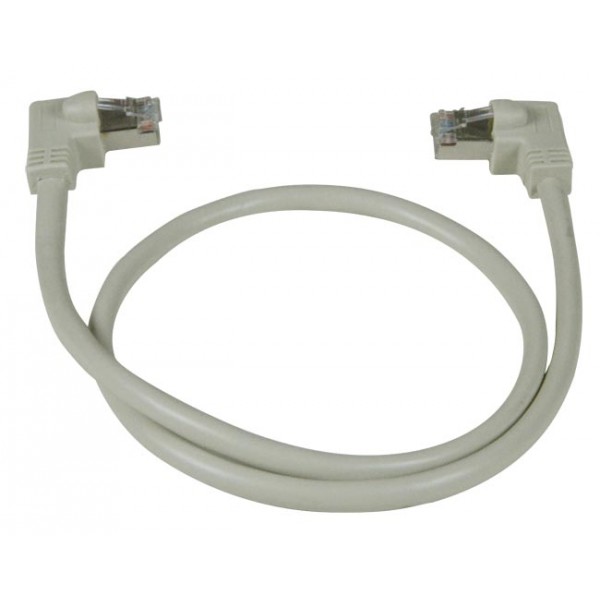

CAT6 Right Angle to Left Angle Shielded Patch Cords, Operating Temperature Range: 32 to 140°F (0 to 60℃) Click to Zoom

CAT6 Right Angle to Left Angle Shielded Patch Cords, Operating Temperature Range: 32 to 140°F (0 to 60℃)

90-degree CAT6 Right Angle to Left Angle Shielded Cables feature RJ45 corner connectors and fit in small confined spaces.

More details

Overview

VPI's Right Angle to Left Angle Shielded CAT6 Cable is used in network applications such as 10Base-T, 100Base-T, 1000Base-T Ethernet technology to 100 meters (325 feet), and have been designed specifically for Gigabit Ethernet applications (Gigabit over copper).They perform at high-data transfer rates, and work with ATM and gigabit speed products. These cables deliver improved performance over standard Cat5e cables.

These right and left angle Category 6 Shielded Twisted Pair (STP) patch cords are assembled with T568A four pair stranded cable, and are ideal for confined spaces. They consist of a foil shield with drain wire to protect signals from external noise, and a strain relief boot to reduce stress on the cable.

  • Used to connect your network card to any of the following:
    • 10GBASE-T Ethernet
    • 1000BASE-T Gigabit Ethernet
    • 100BASE-T Ethernet
    • 100BASE-TX Fast Ethernet
    • 10BASE-T Ethernet
  • Patch cables and boots are the same color
  • Boots are snagless.
  • Foil shield with drain wire protects signals from external noise.
  • Patch cables have stranded copper conductors for flexibility - great for frequent changes that occur at the wall outlet or patch panel.
  • Right and left angle configuration useful in tight fit situations.
  • 24AWG stranded STP CAT6.

Specifications

    • Operating temperature: 32 to 140°F (0 to 60℃)
    • 24AWG stranded STP CAT6.
    • 8x8 (RJ45) plugs
    • Wired straight through.
    • 15 micron gold plated contacts.
    • Complies with TIA/EIA 568B standard.
    • UL and RoHS compliant.

Downloads

Buy

VPI Part NumberLengthPriceQuoteBuy
CAT6-RLAV2-2-GRAY-SHLD 2 ft $5.00
CAT6-RLAV2-3-GRAY-SHLD 3 ft $7.00
CAT6-RLAV2-6-GRAY-SHLD 6 ft $6.50
