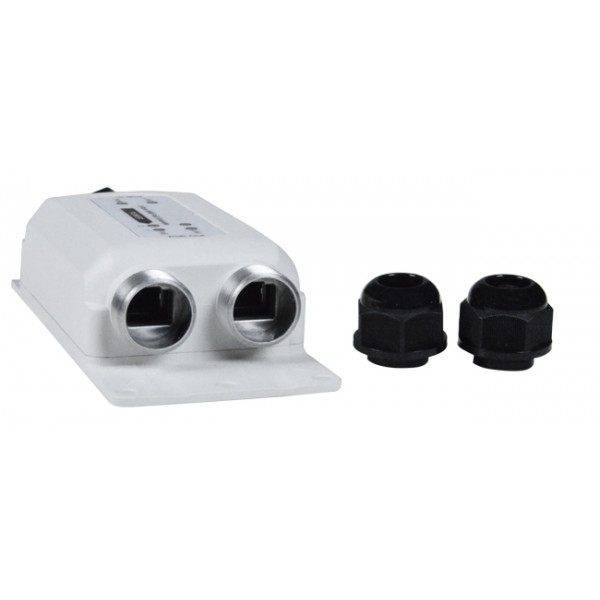

Waterproof Gigabit Power over Ethernet (POE) Extender, 2-Port

Extend a POE signal up to 328 feet using this IP67-rated waterproof extender with two output ports.

More details

Overview

Use the Waterproof Gigabit Power over Ethernet Extender to extend a POE signal up to 328 feet (100m) in harsh environments. Cascade two ST-POE-2P-WTP units to extend POE signals up to 984 feet (300m) from end-to-end or up to 500m using star topology. Ideal for Wi-Fi access points, IP phones, surveillance cameras, and kiosks where a power connection is not available.

Please Note: Run one end of an un-terminated CATx cable through the waterproof cap and gasket before terminating the RJ45 connector.

  • Ports: 1 input, 2 output
  • Waterproof gasket is not compatible with pre-terminated cables.
  • Extend a POE signal up to 328ft (100m) over a single CAT cable (shielded cables recommended).
    • A maximum 2 units can be daisy chained. If the POE device powered requires 25.5W to 48W, then 2 units cannot be daisy-chained. In that case the maximum extension distance is 200 m.
  • For harsh industrial or outdoor environments.
  • Power over Ethernet – no additional power source required.
  • Fully compatible with Gigabit Ethernet.
  • Wire gauge: 24AWG
  • IP67 rated waterproofing
    • CATx cable with a 5mm-6mm O.D. is recommended for waterproofing.
  • Indoor or outdoor use.
  • 10/100/1000Mb Half and Full Duplex compatible.
  • Regulatory approvals: CE, RoHS, FCC, VCCI

Specifications

    • 2-port Outdoor 30/60/95W POE Extender.
    • Operating temperature: -40℃ to 60℃
    • Storage Temperature: -40℃ to 85℃
    • Operating Humidity: 10~90%, Non-condensing
    • Number of channels: one POE in and two POE out.
    • Bandwidth: 100Mbps Max.
    • Connectors required: RJ45
    • Surge protection: 6 KV
    • Weather rating: IP67
    • Vandal proof: IK10
  • Dimensions
    • 167.5 x 72.8 x 39.8 mm, 6.59 x 2.87 x 1.57 in. (W x H x D)
  • Weight
    • 0.794lbs.(360g)

Downloads

Buy

VPI Part NumberNamePriceQuoteBuy
ST-POE-2P-WTP Waterproof Gigabit Power over Ethernet (POE) Extender, 2-Port $170.00
