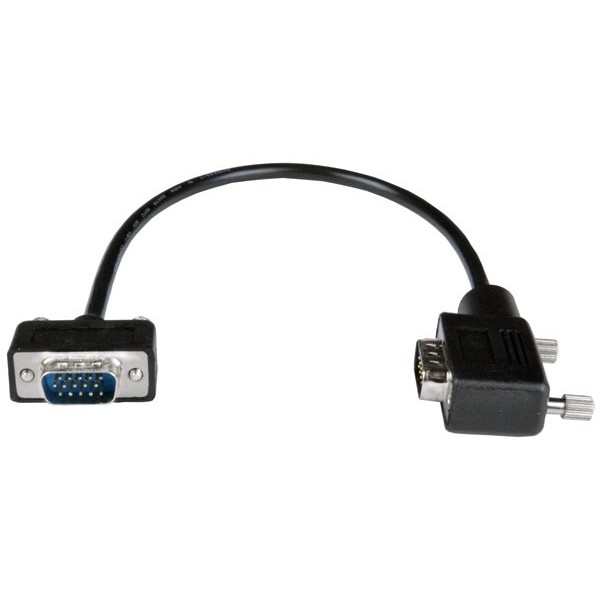

90-Degree Left-Angled to Straight Connector Ultra-Thin VGA Monitor Cable, Male-to-Male, 1 ft

Connect a VGA monitor using ultra slim VGA cable. The 90° connector with left cable exit accommodates tight installations.

Please Note: We have a minimum order requirement of $25

Straight male 15HD to 90-degree left angled male 15HD interface.
No ghosting and no degradation - guaranteed.
Diameter: 0.200".
Ideal for applications where space is tight.
Gold plated contacts.
Three 75 ohm micro coaxial cables.
The shield consists of mylar foil, braided shield and drain wire.
Shallow backshell.
Supports 1920x1200 (WUXGA) video resolution.
Same video transmission quality as traditional thicker monitor cable.
The conductors for the three color lines are 30AWG coaxial, while the remaining conductors are 32AWG stranded wire.
Available length: 1 foot
- Contact a VPI product consultant for custom lengths.
