Waterproof RJ45 Connector to 2x5 Shrouded Male Straight Pin Header, Case Side Click to Zoom

Waterproof RJ45 Connector to 2x5 Shrouded Male Straight Pin Header, Case Side

IP68-rated weatherproof RJ45 feed-thru jack to two-by-five structure shrouded male straight pin header

More details

Overview

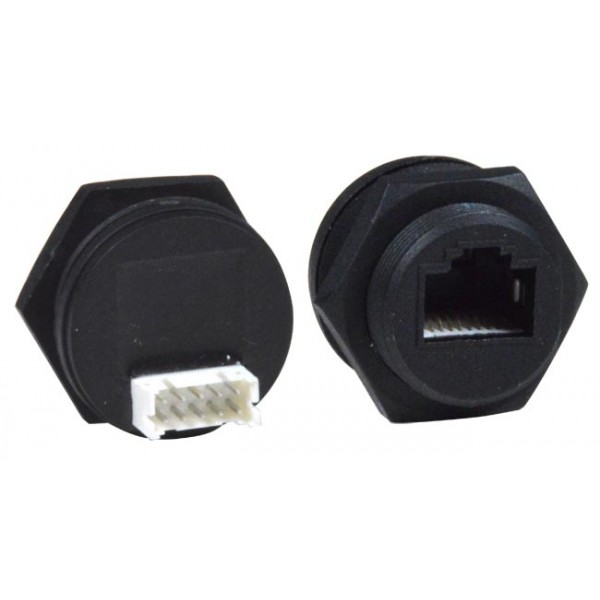

The Waterproof RJ45 Connector to 2x5 Shrouded Male Straight Pin Header provides IP68 rated dust and water protection in harsh environments. The connector features an RJ45 jack for CAT5e/6 cable connection, and a 2x5 Straight Shrouded Pin Header. It is shrouded to provide mechanical integrity, and mates with Hirose DF11-10DS or equivalent housing.

The case side connector mounts to a panel or enclosure, and pairs with the RJ45-5EWTP-CB Cable Gland for waterproof connection.

  • Female RJ45 pass-thru receptacle for use with an Ethernet patch cord.
  • Two-by-five pin structure.
    • Pitch: 2mm
  • Ideal for harsh industrial environments such as factory automation or outdoor installations where cable needs to be run from a dry location to a wet one.
  • Circular threaded coupling mounts case side to connect with cable side connector.
    • 13/16” – 28 UN (Unified Screw Thread) threading.
  • O-rings provide IP68-rated water and dust protection.
  • Can be mounted to a maximum panel thickness of 4.0mm.
  • 50 micron gold plated RJ45 contacts for corrosion resistance.
  • Number of positions: 10
    • Male shrouded pins require pairing with 2x5 female housing.
  • To achieve waterproof/IP68 protection, the outside RJ45 connection must be sealed with either a case side waterproof cap or a connected cable with waterproof cable gland.
    • Requires RJ45-5EWTP-CB for complete waterproof connection.
    • Use RJ45-5EWTP-CAPT or CAP-WTP-HD-CST to protect the connector when not in use.

Specifications

    • Contact Resistance: ≤ 30mΩ
    • Insulation Resistance: ≥100MΩ
    • Mounting Panel Thickness: ≤ 4.0 mm
    • 50 micron gold plated RJ45 contacts.
    • Waterproof rating: IP68
    • Regulatory approvals: RoHS
  • Dimensions
    • WxDxH in: 1.01x1.16x1.04 (25.6x29x26 mm)
    • Pitch: 2mm
    • Weight: 0.0236 lbs
  • Environmental
    • Operating temperature: -13 to 185°F (-25 to 85°C).

Downloads

Buy

VPI Part NumberNamePriceQuoteBuy
RJ45-WTP-SW2R-JCK Waterproof RJ45 Connector to 2x5 Shrouded Male Straight Pin Header, Case Side $14.50

Add Item(s) to Quote Add Item(s) to Cart
