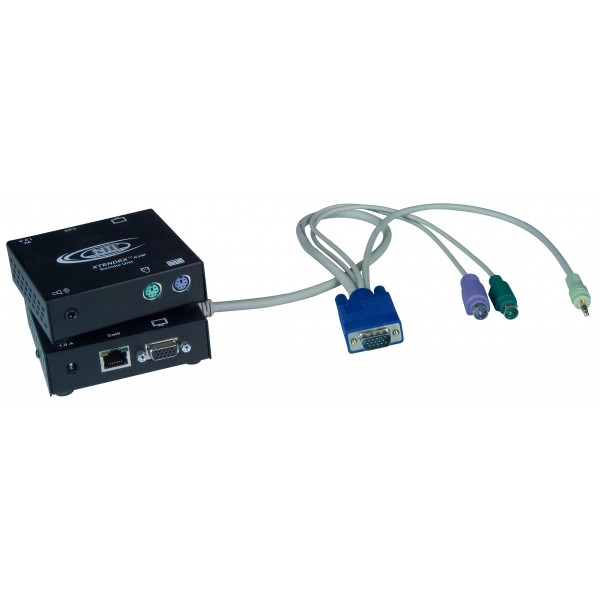

VGA PS2 KVM + Audio Extender via CAT5 Cable, 600' Click to Zoom

VGA PS2 KVM + Audio Extender via CAT5 Cable, 600'

Provides local and remote keyboard, monitor, mouse and audio access to a PC up to 600 feet via CAT5 cable.

More details

ST-C5KVMA-600

$395.00

Overview

The VGA PS/2 KVM Extender provides local and remote KVM (PS/2 keyboard, PS/2 mouse and VGA monitor) and stereo audio access to a PC up to 600 feet using CAT5/5e/6/6a cable.

  • Sharpest and clearest VGA quality over CAT5 of any manufacturer.
  • Supports two users: one local and one remote.
  • Local unit provides local KVM and stereo audio access.
  • Supports resolutions to 1920x1440.
  • Allows local and remote access to network servers.
  • Built-in surge protection.
  • Keep-alive keboard/mouse emulation for flawless operation.
  • Use in-house CAT5 wiring to locate a keyboard, monitor and mouse remotely.

Specifications

  • Local Unit
    • Host Connection
      • Supports a PC or SUN Fire™ V20z
      • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Linux, and FreeBSD.
      • One male 15-pin HD / two male 6-pin miniDIN connectors for PC or NTI KVM switch.
      • 3.5 mm stereo plug for audio input.
    • Local Access
      • Crisp and clear 1920x1440 video resolution.
      • One female 15-pin HD / two female 6-pin miniDIN connectors.
      • Compatible with Japanese keyboard layout.
      • Supports PS/2 mice including the IBM ScrollPoint mouse.
      • 3.5 mm stereo jack for audio output.
  • Remote Unit
    • Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.
    • One female 15-pin HD connector / two 6-pin miniDIN connectors.
    • Compatible with Japanese keyboard layout.
    • Supports PS/2 mice including the IBM ScrollPoint mouse.
    • 3.5 mm stereo jack for audio output.
  • Audio
    • Stereo audio can be heard both locally and remotely.
    • Frequency response: 20 Hz to 20 kHz, +/-1 dB.
    • Signal-to-Noise Ratio (SNR): 76 dBA.
    • Total Harmonic Distortion and Noise (THD+N): 0.017%.
    • Stereo crosstalk: -70 dB.
    • Input impedance: 10k Ohms.
    • Line level output; supports multimedia speakers.
    • Maximum I/O levels: 3.1Vp-p (line level).
    • CD quality audio output.
  • MTBF
    • Local unit: 82,073 hours.
    • Remote unit: 79,970 hours.
  • Power
    • 110 or 220 VAC at 50 or 60 Hz via AC adapter.
    • Power Consumption: 10 W (each - local and remote unit).
  • Dimensions
    • WxDxH: 3.5x3.1x1.2 in (89x79x30 mm)
  • Weight
    • 1.2 lbs (0.54 kg)
  • Environmental
    • Operating temperature: 32 to 100°F (0 to 38°C).
    • Storage temperature: -20 to 140°F (-30 to 60°C).
    • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
  • Regulatory Approvals
    • CE, RoHS
    • TAA compliant
  • Cable Distances & Resolutions

      ST-C5KVM-600 Distances and Resolutions for CAT5/5e/6/6a Cables
      Cable Distance Maximum Resolution
      CAT5/5e Solid UTP 600 feet (183 meters) 1024x768 at
      60 Hz
      400 feet (122 meters) 1280x1024 at
      60 Hz
      300 feet (91 meters) 1600x1200 at
      60 Hz
      100 feet (30 meters) 1920x1440 at
      60 Hz
      CAT5/5e Solid STP, CAT6/6a Solid UTP 300 feet (91 meters) 1024x768 at
      60 Hz
      200 feet (61 meters) 1280x1024 at
      60 Hz
      100 feet (30 meters) 1920x1440 at
      60 Hz
