Gigabit Manual Ethernet Switch Click to Zoom

Gigabit Manual Ethernet Switch

Switch one Gigabit Ethernet connection between four computers, or switch one computer between four Gigabit Ethernet connections.

More details

Overview

The Gigabit Manual Ethernet Switch enables up to four computers to switch between one network (DSL modem, cable modem, LAN file server, etc.), or one computer to switch between up to four separate networks using standard CAT5/5e/6 cable.

  • Available in 2-port or 4-port models.
  • Female RJ45 connectors for CAT5/5e/6 cable.
    • Use CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors up to 100 meters (not included).
  • Operates at 10/100/1000 Mbps.
  • Supports full-duplex Ethernet.
  • Control the switch through the front panel buttons or RS232.
    • Male DB9 serial connector for RS232.
  • Status LEDs for visual indication of switch connection between the "COMMON" and the user selectable ports.

Specifications

  • Connectors
    • Female RJ45 connectors for CAT5/5e/6 cable.
    • Male DB9 serial connector for RS232.
  • Dimensions
    • WxDxH (in): 5.3x4.3x1.3 (135x109x33 mm)
  • Environmental
    • Operating temperature: 32 to 104°F (0 to 40°C)
    • Storage temperature: -4 to 140°F (-20 to 60°C)
    • Operating/storage relative humidity: 10 to 90% non-condensing RH
  • Power
    • 110 to 220 VAC at 50 or 60Hz via AC adapter (included).
  • Cables
    • Use CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors up to 100 meters (not included).
  • Regulatory Approvals
    • CE, RoHS
    • TAA compliant

    • Downloads

    Buy

    VPI Part NumberPortsPriceQuoteBuy
    ETH-2X1-RS-G 2-Port with RS232 $200.00
    ETH-4X1-RS-G 4-Port with RS232 $290.00

    Add Item(s) to Quote Add Item(s) to Cart

    Diagram

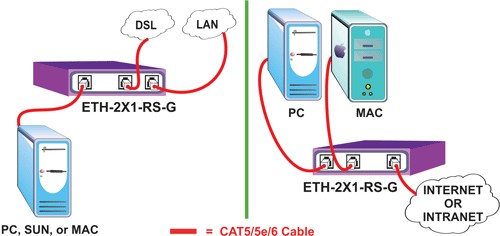

      Application Drawing

    • How to Switch One Computer Between Two Networks, or Switch One Network Between Two Computers
