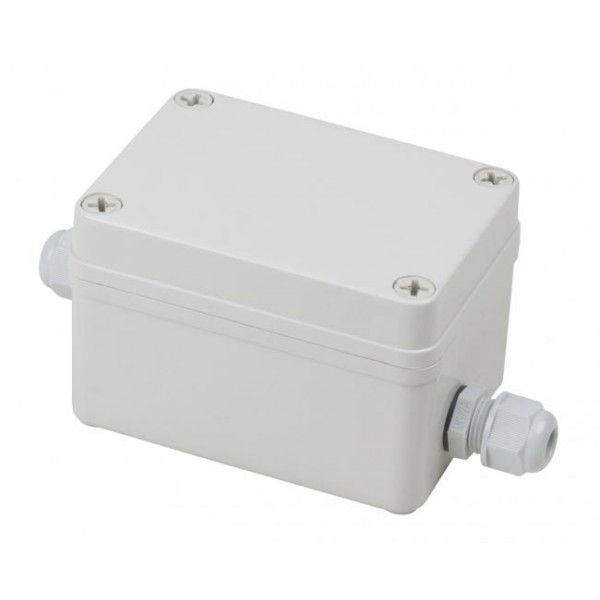

Waterproof Gigabit Power over Ethernet (POE) Surge Protector

IP66-rated weatherproof POE surge protector to protect POE equipment from high voltage surges.

More details

Overview

The Waterproof Gigabit Power over Ethernet Surge Protector protects POE equipment from high voltage surges.

Note: two Surge Protectors must be used for complete nearby lightning strike protection.

  • Power and signal line protection.
  • Enclosure provides IP66-rated waterproofing.
  • Built-in ESD (electrostatic discharge) protection and nearby lightning strike protection.
    • ESD protection: 15KV Air, 8KV Contact
    • Nearby lightning strike protection: 10KA (8/20us), 20V (8/20us)
  • Pass through data rate: 10/100/1000Base-T Mbps
  • 802.3af, 802.3at and IEEE802.3bt 71W compliant.
  • Input/Output: RJ45
  • Two Surge Protectors must be connected together using a CAT5/5e/6/6a/7/8 cable to provide nearby lightning strike protection.
    • Compatible to daisy-chain with the SP-RJ45-10G 10Gbps RJ45 Ethernet Surge Protector.
    • The SP-RJ45-10G uses special diodes and gas discharge modules for high performance lightning protection.

Not compatible with pre-terminated cables.

Specifications

    • RJ45 Ethernet Ports.
    • Response time: <0.7 ns
    • Support a POE device up to 90W.
    • Supports Mid-Span and End-Span POE.
    • ABS material
  • Dimensions
    • WxDxH (in): 3.15x6.22x2.8 (80x158x71 mm)
    • Weight: 0.49 lbs
  • Environmental
    • Operating temperature: -40 to 158°F (-40 to 70°C).
    • Storage temperature: -40 to 194°F (-40 to 90°C).
    • Operating and Storage Relative Humidity: up to 95% non-condensing RH.

Downloads

Buy

VPI Part NumberNamePriceQuoteBuy
SP-POE-WTP Waterproof Gigabit Power over Ethernet (POE) Surge Protector $98.00
