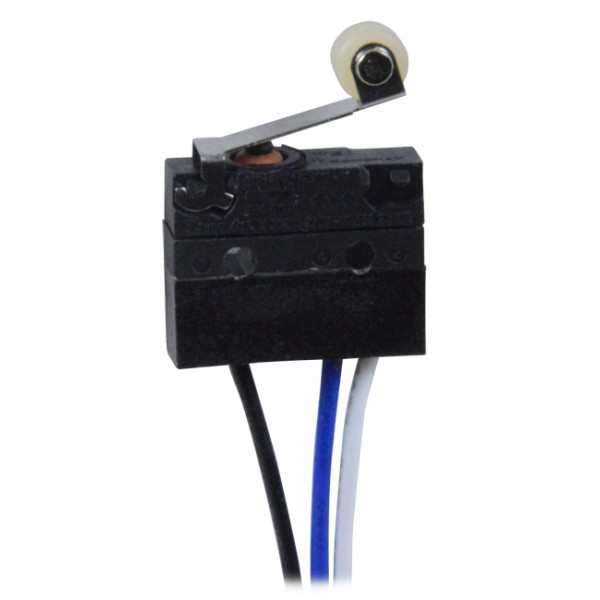

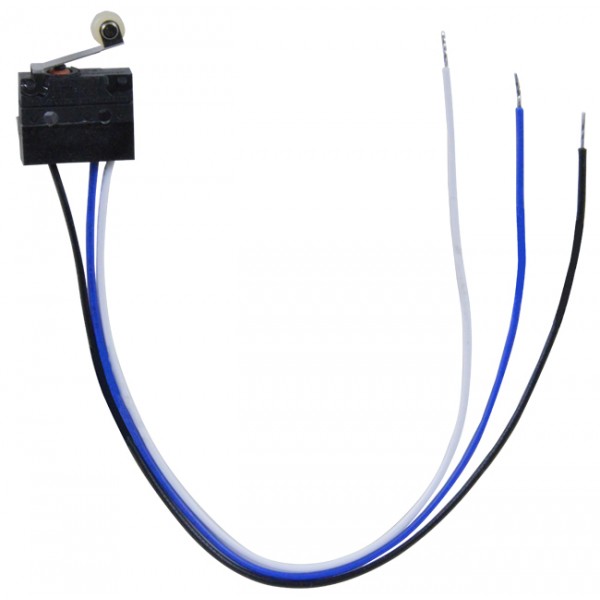

IP67-Rated Contact Switch with Roller Lever

Snap-action switch with a 17.5mm roller lever actuator used for simple or precision ON/OFF applications

More details


  • Single-pole double-throw (SPDT) circuitry.
    • For normally open or normally closed circuit connection.
  • IP67-rated water and dust protection.
  • Cable length: 7.87 in (20 cm)
    • Wire gauge: 24 AWG
    • Includes two butt splice connectors for extending the cable length up to 1,000 feet.
  • Connect to digital input or RJ45 sensor port on an E-2D/5D/16D.
    • To connect to the RJ45 inputs, use CAT5/5e/6 cable terminated at one end with RJ45 connector. Connect the un-terminated end to the sensor cables using the included butt splice connectors.
  • Electrical rating: 125/250 VAC, 0.1 A
  • Dimensions of switch body WxDxH (in): 0.78x0.61x0.25 (19.8x15.6x6.4 mm)
  • Regulatory approvals: UL, RoHS


VPI Part NumberNamePriceQuoteBuy
E-CS-RLIP67-20CM IP67-Rated Contact Switch with Roller Lever $9.00
