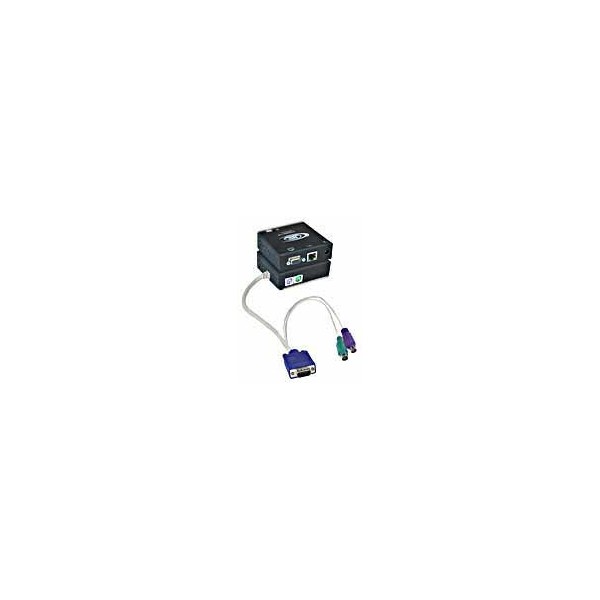

VGA PS2 KVM Extender via CAT5 Cable, 300' Click to Zoom

VGA PS2 KVM Extender via CAT5 Cable, 300'

Provides local and remote PS/2 keyboard, PS/2 mouse and VGA monitor access to a PC up to 300 feet via CAT5 cable.

More details

Overview

The VGA PS/2 KVM extender provides local and remote KVM (PS/2 keyboard, PS/2 mouse and VGA monitor) access to a PC up to 300 feet using CAT5/5e/6/6a UTP cable.

  • Sharpest and clearest VGA quality over CAT5 of any manufacturer.
  • Supports two users: one local and one remote.
  • Local unit provides local KVM access.
  • Supports resolutions to 1920x1440.
  • Allows local and remote access to network servers.
  • Built-in surge protection.
  • Keep-alive keyboard/mouse emulation for flawless operation.
  • Use in-house CAT5/5e/6/6a wiring to locate a keyboard, monitor and mouse remotely.

Specifications

  • Local Unit
    • Host Connection
      • Supports a PC or SUN Fire™ V20z.
      • Multiplatform support: Windows 7/8/10, Windows Server 2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 10/11.
      • Male 15-pin HD/male 6-pin miniDIN connectors for PC.
    • Local Access
      • Crisp and clear 1920x1440 video resolution.
      • Female 15-pin HD connector.
      • Female 6-pin miniDIN connectors.
      • Compatible with Japanese keyboard layout.
      • Supports PS/2 mice including the IBM ScrollPoint mouse.
  • Remote Unit
    • Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.
    • Female 15-pin HD connector.
    • Female 6-pin miniDIN connectors.
    • Compatible with Japanese keyboard layout.
    • Supports PS/2 mice including the IBM ScrollPoint mouse.
  • Power
    • Local and remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter.
    • Power Consumption: 10 W (each - local and remote unit).
  • Dimensions
    • WxDxH: 3.5x3.1x1.2 in (89x79x30 mm)
  • Environmental
    • Operating temperature: 32 to 113°F (0 to 45°C).
    • Storage temperature: -22 to 140°F (-30 to 60°C).
    • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
  • Video Quality Adjustment
    • Video quality adjustment for different lengths of CAT5/5e/6/6a cable is done manually.
  • Regulatory Approvals
    • CE, RoHS
    • TAA compliant
  • MTBF
    • Local unit: 88,969 hours.
    • Remote unit: 86,881 hours.
  • Weight
    • 1.2 lbs (0.54 kg)
  • Cable Distances & Resolutions

      ST-C5KVM-300 Distances and Resolutions for CAT5/CAT5e/CAT6/CAT6a cables
      Cable Distance (ft) Maximum Resolution
      CAT5/5e Solid UTP 300 1280x1024 at 60 Hz
      150 1600x1200 at 60 Hz
      100 1920x1440 at 60 Hz
      CAT5/5e Solid STP,
      CAT6 Solid UTP      		 300 1024x768 at 60 Hz
      150 1280x1024 at 60 Hz
      100 1600x1200 at 60 Hz
      CAT6a Solid UTP 300 1024x768 at 60 Hz
      150 1280x1024 at 60 Hz
      100 1920x1200 at 60 Hz

Buy

VPI Part NumberNamePriceQuoteBuy
ST-C5KVM-300 VGA PS2 KVM Extender via CAT5 Cable, 300' $500.00
