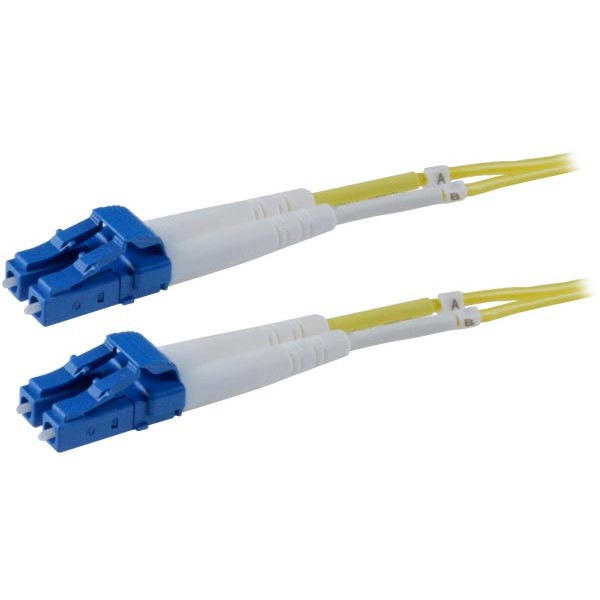

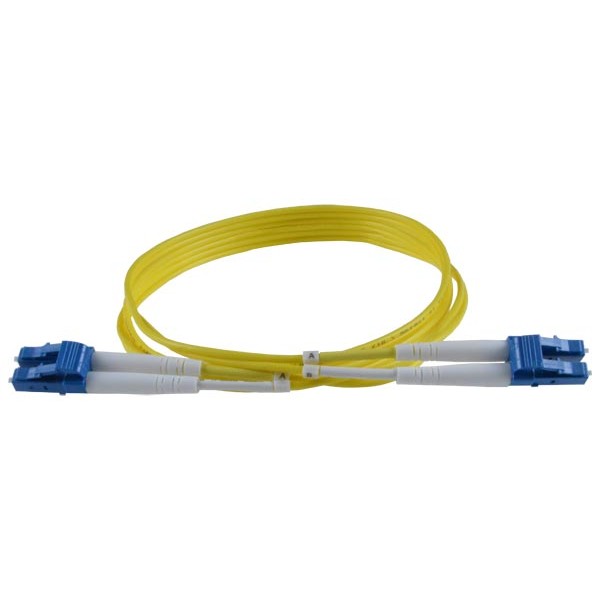

LC-LC Duplex Singlemode Fiber Patch Cables, 9-Micron

Bend Insensitive Fiber, Singlemode 9/125-Micron OS2, Duplex LC to LC, 1 Meter

More details

Overview

  • Features a 9-µm core and 125-µm cladding.
  • Duplex cable is joined together in a zipcord style for easy separation.
  • Ideal for patching singlemode backbones to high-speed Gigabit network devices.
    • Use for 1G/10G/40G/100G/400G Ethernet connections.
    • Suitable for enterprise networks, telecomm rooms, server farms, cloud storage networks, data centers, and any place fiber jumper cables are needed.
  • Bend insensitive fiber cable can be stapled, bent, and twisted around corners without sacrificing performance.
  • Ceramic ferrules for long-lasting reliability and precision.
  • UPC (Ultra Physical Contact) polish – provides a better surface finish with less back reflection.
  • A/B markers easily identify the TX and RX connector on each end of the assembly.
  • Immune to electrical interference.
  • Included connector covers keep out dust and contaminants.
  • Contact a VPI product consultant for custom lengths.

Specifications

    • Connectors: Duplex male-to-male LC
      • Connector covers included.
    • Polish type: UPC
    • Ferrules: Zirconia ceramic
    • Fiber mode: Singlemode 9/125-micron OS2
    • Fiber Grade: G.657.A1 Bend Insensitive Fiber
    • Cable jacket: OFNR PVC (Riser-Rated)
    • Insertion loss: ≤ 0.3dB
    • Return loss: ≥ 50dB
    • Cable diameter: 2.0mm
    • Bend radius: 10mm
    • Attenuation at 1310 nm: 0.36 dB/km
    • Attenuation at 1550 nm: 0.22 dB/km
    • Length: 1 meter
      • Contact a VPI product consultant for custom lengths.
  • Environmental
    • Operating temperature: -4 to 158°F (-20 to 70°C)
    • Storage temperature: -40 to 176°F (-40 to 80°C)
  • Regulatory Approvals
    • RoHS

Buy

VPI Part NumberNamePriceQuoteBuy
FIBER-D-LCLC-9-1M LC-LC Duplex Singlemode Fiber Patch Cables, 9-Micron $12.90
