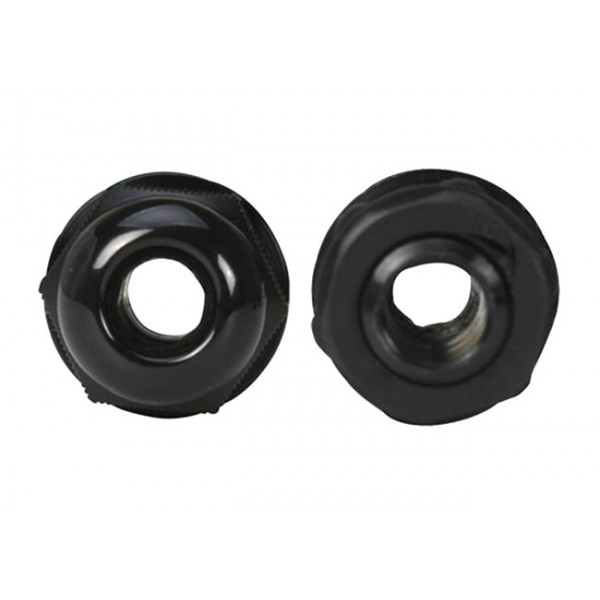

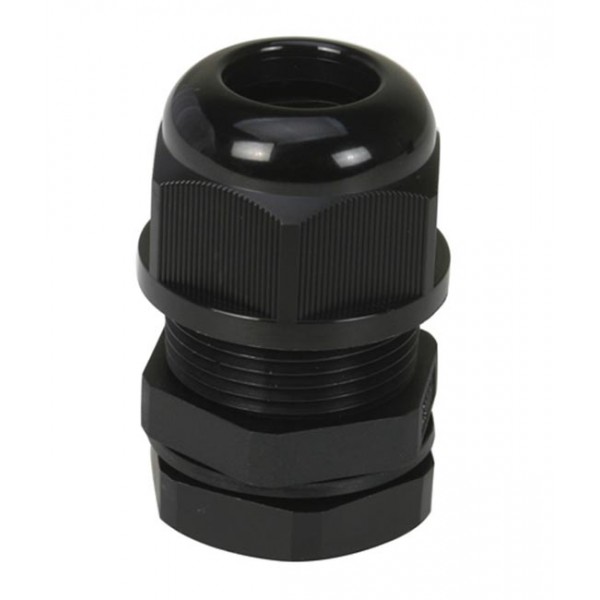

Parallel (G,PF) Short Threaded Waterproof Cable Gland IP68 for Cable Range 9-14mm Thread Length 10mm

Waterproof cable glands are used to seal a cable opening as it passes through a harsh environment

More details

Overview

Waterproof cable glands are used to create watertight exit points from harsh environment enclosures and/or through bulkheads. How to use: the cable gland compresses a seal onto round cable to prevent ingress of water or particles that could cause permanent damage to electronic devices.

Available in many outer diameters (OD), choose the cable gland that closest meets the outer diameter (cable range) of your cable for a watertight seal. Do NOT put multiple cables through one cable gland unless it's inside of conduit tubing.

Cable glands provide an ideal preventive solution for applications such as information networks, electrical systems, distribution panels, audio/visual displays and machines.

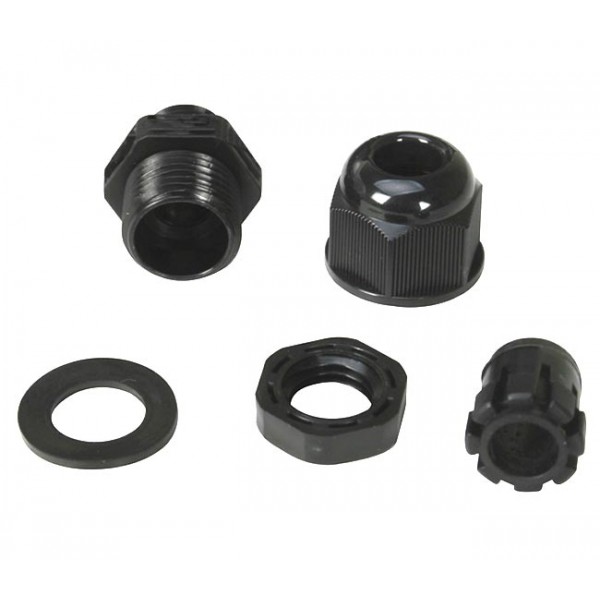

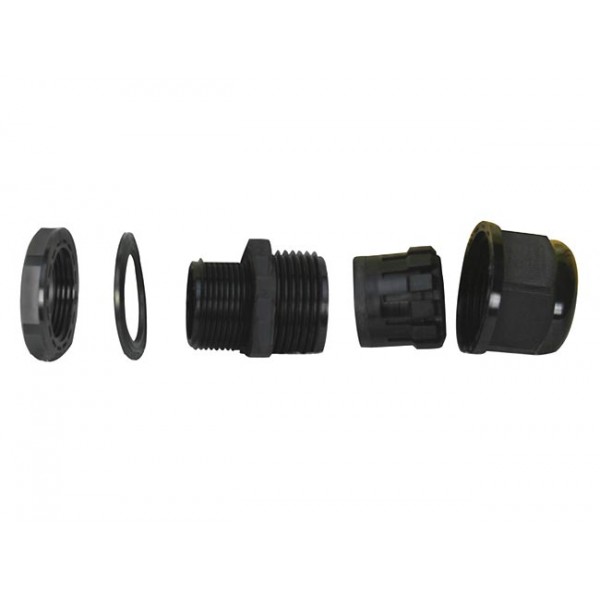

  • Parallel threaded cable glands consist of: lock nut, washer, body, seal, clamping claw and thread-lock sealing nut.
  • Thread specifications: G (PF) thread, in accordance with ISO and JIS parallel threads for pipes - ISO 228-1).
  • Housing Material: PA-66 (Nylon 66) Certified by UL (Fire Protection rating UL 94-2)
  • EPDM outdoor weather resistant rubber gaskets
  • IP68 rating for harsh environments.
  • Seal and clamping claw on cable glands prevents the bolt nut from becoming loose and maintains its high torque.

Specifications

  • Environmental
      Operating Temperature: -40 to 212ºF (-40 to 100ºC)
  • Waterproof Rating
      IP68
  • Thread Type
      G 1/2"
  • Thread OD
      20.955mm (0.825 in)
  • Thread Length
      10mm (0.394 in)
  • Cable Range
      9-14mm (0.35-0.55 in)
  • Panel Mounting Hole
      21-21.2mm (0.82-0.83 in)

Downloads

Buy

VPI Part NumberNamePriceQuoteBuy
GLND-WTP-P-14B Parallel (G,PF) Short Threaded Waterproof Cable Gland IP68 for Cable Range 9-14mm Thread Length 10mm $3.40
