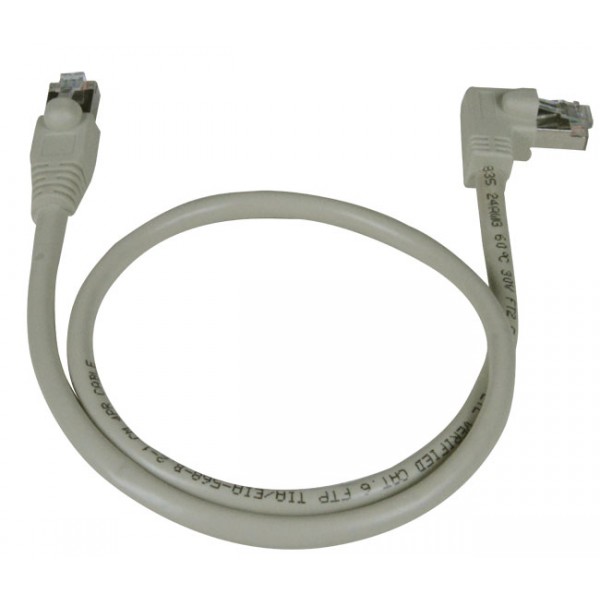

CAT6 Right Angle to Straight Shielded Patch Cords, Operating Temperature Range: 32 to 140°F (0 to 60°C)

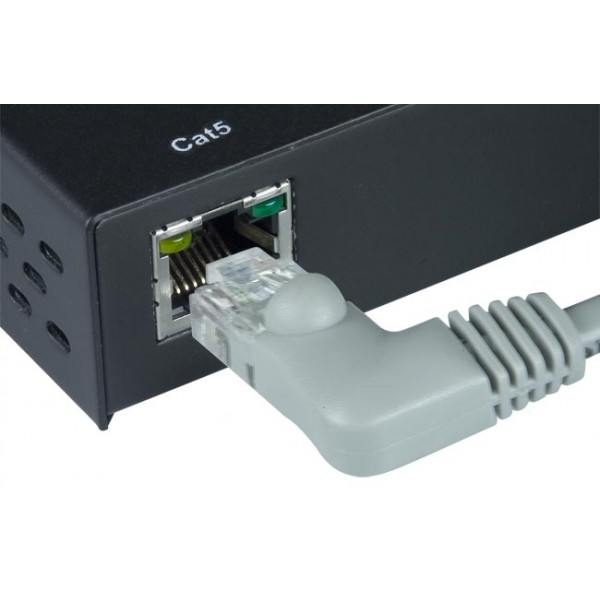

90-degree CAT6 Right Angle to Straight Shielded Cables feature RJ45 corner connectors and fit in small confined spaces. They have a max operating temperature of 140°F (60°C).

More details


VPI's VPCAT™ Right Angle to Straight Shielded CAT6 Cable is used in network applications such as 10Base-T, 100Base-T, 1000Base-T Ethernet technology to 100 meters (325 feet), and have been designed specifically for Gigabit Ethernet applications (Gigabit over copper).They perform at high-data transfer rates, and work with ATM and gigabit speed products. These cables deliver improved performance over standard Cat5e cables.

This is the newest fully-approved system-standard CAT6 Shielded Twisted Pair (STP) cable. CAT6 is completely backward-compatible with current CAT5e equipment. These right angle Category 6 patch cords are assembled with T568B four pair stranded cable, and are ideal for confined spaces. They consist of a foil shield with drain wire to protect signals from external noise, and a strain relief boot to reduce stress on the cable.

  • Used to connect your network card to any of the following:
    • 10GBASE-T Ethernet
    • 1000BASE-T Gigabit Ethernet
    • 100BASE-T Ethernet
    • 100BASE-TX Fast Ethernet
    • 10BASE-T Ethernet
  • Patch cables and boots are the same color
  • Boots are snagless.
  • Foil shield with drain wire protects signals from external noise.
  • Patch cables have stranded copper conductors for flexibility - great for frequent changes that occur at the wall outlet or patch panel.
  • Right angle configuration useful in tight fit situations.
  • Available lengths: 1.5/2/3/9 ft.
  • Available colors: Gray
  • Contact a VPI product consultant for custom lengths and colors.


    • Wire gauge:
      • 1.5/3 ft: 26AWG.
      • 2/9: ft: 24AWG
    • Stranded STP CAT6.
    • 8x8 (RJ45) plugs
    • Wired straight through.
    • Diameter: 6.2mm
    • 15 micron gold plated contacts.
    • Complies with TIA/EIA 568B standard.
    • UL, CSA, RoHS compliant.
  • Environmental
    • Operating temperature: 32 to 140°F (0 to 60℃)



VPI Part NumberLengthPriceQuoteBuy
CAT6-RASV2-1-5-GRAY-SHLD 1.5 ft $5.50
CAT6-RASV2-2-GRAY-SHLD 2 ft $6.00
CAT6-RASV2-3-GRAY-SHLD 3 ft $9.00
CAT6-RASV2-9-GRAY-SHLD 9 ft $11.00
