Fiber Optic Fault Finder Click to Zoom

Fiber Optic Fault Finder

Locate breaks, bends or unseen faults causing losses in fiber optic cable

More details

Limited stock. All sales final on clearance items.

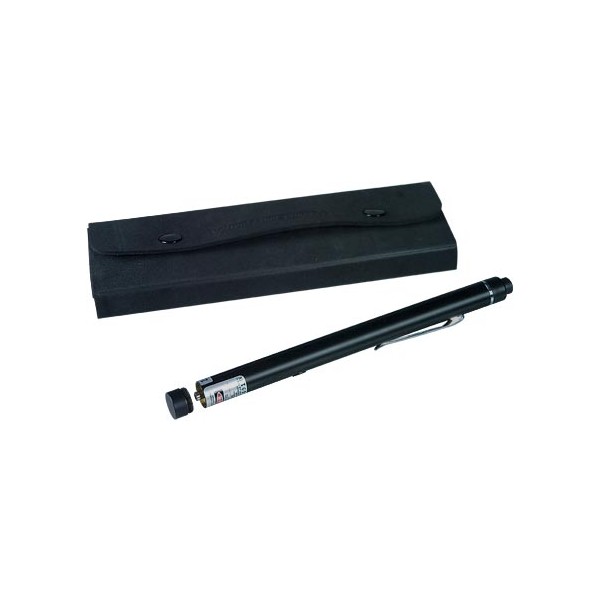

The FIBER-CHECKER-CLR allows technicians to quickly detect faults in single and multimode fiber optic cable up to 3 kilometers with its visible 650nM red laser. It can be used to locate a broken splice or fiber, identify overly tight cable ties, or isolate a damaged connector, even through 3mm buffered fiber.

A break or bend in the fiber can be indicated by red light escaping from the cable at the fault point. The laser output from cable ends is most clearly visible when facing a flat surface approximately six inches away.

  • Power switch located at rear for extra safety.
  • Switch between continuous or 3Hz pulse mode.
  • Slim design in the shape of a pocket sized pen with clip.
  • Front screw-on cap designed for extra protection.
  • Can be used to test all fiber connectors with 2.5mm ferrule (FC, SC, ST).


    • Wavelength
      • 650nM laser
    • Connector compatibility
      • 2.5mm ferrule
    • Spectral Width(nM)
      • <±10
    • Range
      • Visible up to 3km
  • Power
    • Output: <5mW
    • 2xAAA batteries(included)
    • On/Off switch
    • >400uW coupled power
  • Dimensions
    • Length: 5.75"
    • Diameter: 0.54"
  • Weight
    • 0.175 lbs (batteries included).
  • Package Includes
    • Carrying case
    • Instructions
    • Fiber optic tester
    • 2xAAA batteries


VPI Part NumberNamePriceQuoteBuy
FIBER-CHECKER-CLR Fiber Optic Fault Finder

Add Item(s) to Quote Add Item(s) to Cart


    Laser Output Diagram

  • Good fiber end 6" away facing wall. Pattern is focused and circular. Size is much less than 6 inches across.

  • Broken Fiber end 6" away facing wall. Pattern is dispersed and blotchy. Size is approximately 6 inches across.
