USB 2.0 to HDMI/DVI Adapter
Add an extra HDMI/DVI monitor to a computer. Supports HDTV resolutions to 1080p.
Products
- Adapters
- Audio/Video
- Cables
-
CAT5/5e/6/6a/7/8
- CATx Cables
- RJ45 Plugs
- RJ11 Plugs
- CATx Keystone Jacks
- Locking CAT6 Keystone Jacks, Inline Couplers, & Mount Boxes
- Premium RJ45 Plugs
- RJ45 Connector Covers
- RJ45 Strain Relief Boots
- Cable Testers
- RJ45 Adapters & Couplers
- Patch Panels
- Keystone Wallplates
- Surface Mount Boxes
- Network Cable Tools
- Waterproof CAT5e/6 RJ45 Connectors & Cables
- Connectors
- Fiber Optics
- FireWire
- HDMI
- KVM
- Network Devices
- Power Products
- Security, Sensors
- Surge Protectors
- Telephony
- Tools & Test Equipment
- USB
- Wallplates
- Waterproof/Weatherproof
- Clearance
- Custom Cables & Connectors
Information
Click to Zoom
Overview

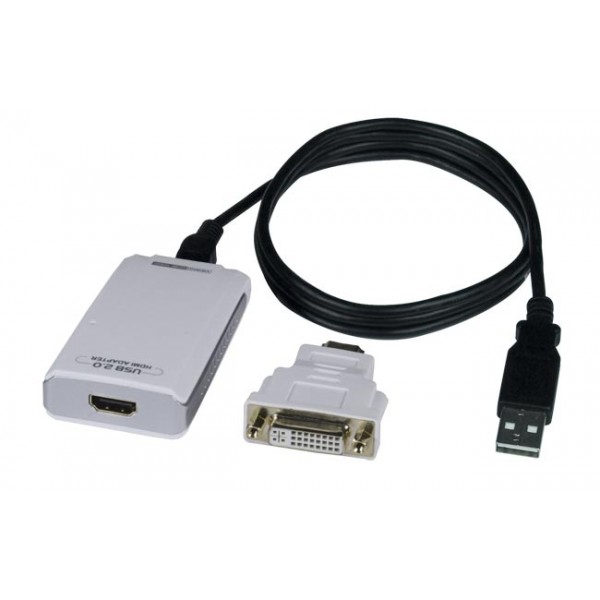

The USB 2.0 to HDMI/DVI display adapter allows you to attach one or multiple HDMI or DVI monitors or projectors to a laptop or desktop using USB 2.0 ports. There is no need to have an additional video card installed. Up to 6 display adapters can be connected to one PC.
- Connects an HDMI/DVI display to a USB port.
- Embedded audio will pass through the adapter.
- Built-in 2.1 channel stereo sound pass-through.
- The monitor connected via the USB2-HD-LC will work whether or not another monitor is connected to the video port of a computer.
- A monitor connected to the video port of a computer is only required to install drivers for the
USB2-HD-LC.
- A monitor connected to the video port of a computer is only required to install drivers for the
- Supports up to 1080p video resolution with standard and wide screen aspect ratios.
- Available modes: Primary, Mirror, Extend, and Screen Rotation.
- Primary: displays the screen on one monitor.
- Extend: displays different programs from one computer on multiple monitors.
- Mirror: displays the same screen on multiple monitors.
- Image rotation: 0°, 90°, 180°, 270°.
- No external power supply.
- Multi-language support.
Specifications
- Connectors
- One female HDMI port for connecting a display.
- Connect a DVI display using the included HDMI to DVI adapter.
- One female Mini USB Type B port for connecting to a PC.
- One female HDMI port for connecting a display.
- Supported Resolutions
- 640x480, 720x480, 720x576, 800x600, 1024x768, 1152x870, 1280x720, 1280x800, 1280x960, 1280x1024, 1360x850, 1400x1050, 1400x900, 1680x1050, 1920x1080
- Power
- Bus-powered
- Dimensions
- WxDxH (in): 3.94x1.97x0.79 (100x50x20mm).
- Environmental
- Operating temperature: 50 to 104°F (10 to 40°C).
- Storage temperature: 14 to 176°F (-10 to 80°C).
- Operating and Storage Relative Humidity: 0 to 85% non-condensing RH.
- System Requirements
- 1-2 Display Adapters
- CPU: Intel/AMD/NVidia/Via 1.2 GHz
- RAM: 512 MB
- 3 Display Adapters
- CPU: Intel/AMD/NVidia/Via 1.6 GHz
- RAM: 1GB
- 4-6 Display Adapters
- CPU: Intel/AMD/NVidia/Via 1.8 GHz
- RAM: 1GB
- Operating Systems
- Windows 7/Vista/XP (32-bit only)/Professional/2000 and Server 2003/2008/2008 R2
- Mac OS X
- Linux
- 1-2 Display Adapters
- Package Includes
- USB to HDMI adapter
- CD (Driver, Display Utility)
- One 3-ft (0.91-m) Mini USB Type B to USB Type A cable
- One HDMI male to DVI-I female adapter
Buy
| VPI Part Number | Name | Price | Quote | Buy |
|---|---|---|---|---|
| USB2-HD-LC | USB 2.0 to HDMI/DVI Adapter | $45.00 |
