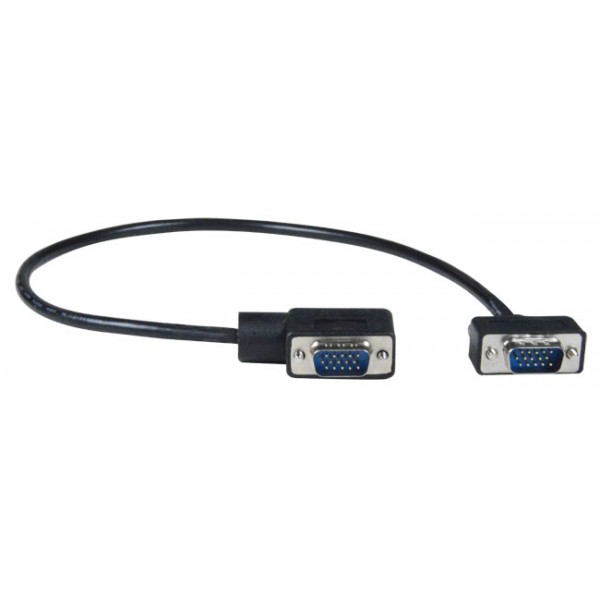

Ultra Thin 90-Degree Left Angled to Straight Connector VGA Cable, Male-to-Male Click to Zoom

Ultra Thin 90-Degree Left Angled to Straight Connector VGA Cable, Male-to-Male

Connect a VGA monitor in tight spaces.  The 90° connector accommodates tight installations. Measures 0.2" in diameter.

More details

Limited stock. All sales final on clearance items.
Clearance

Overview

  • No ghosting and no degradation – guaranteed.
  • Diameter: 0.200".
  • Ideal for applications where space is tight.
  • Gold plated contacts.
  • The shield consists of mylar foil, braided shield and drain wire.
  • Supports 1920x1200 (WUXGA) video resolution.
  • Same video transmission quality as traditional thicker monitor cable.
  • The conductors for the three color lines are 30AWG coaxial, while the remaining conductors are 32AWG stranded wire.
  • Male 15HD to male 90-degree angled 15HD left exit extension.
  • Available length: 1.5 feet.

Downloads

Buy

VPI Part NumberNamePriceQuoteBuy
VEXT-90DL-UTHN-1-5-MM-CLR Ultra Thin 90-Degree Left Angled to Straight Connector VGA Cable, Male-to-Male
$14.50
$7.25

Add Item(s) to Quote Add Item(s) to Cart
