Mini HDMI Extender via two CAT5e/6/6a Click to Zoom

Mini HDMI Extender via two CAT5e/6/6a

Extend an HDMI display up to 150 feet

More details

ST-C5HD-MINI-ULC

$31.00

Overview

The Mini HDMI Extender transmits digital video and audio signals up to 150 feet using two CAT5e/6/6a cables. Each extender consists of a local unit that connects to an HDMI source and a remote unit that connects to an HDMI display.

  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
  • Transmits an HDMI signal over two CAT5e/6/6a cables.
    • Extend up to 100 feet with UTP CAT5e/6 cable.
    • Extend up to 150 feet with UTP CAT6a cable.
  • HDMI features supported:
    • 24-bit Deep color
    • DTS® Digital, DTS-HD Master Audio™, Dolby TrueHD™, LPCM
    • Bandwidth up to 165 MHz (1.65 Gbps).
  • HDCP compliant.
  • No power supply is necessary.
  • No software required.

Specifications

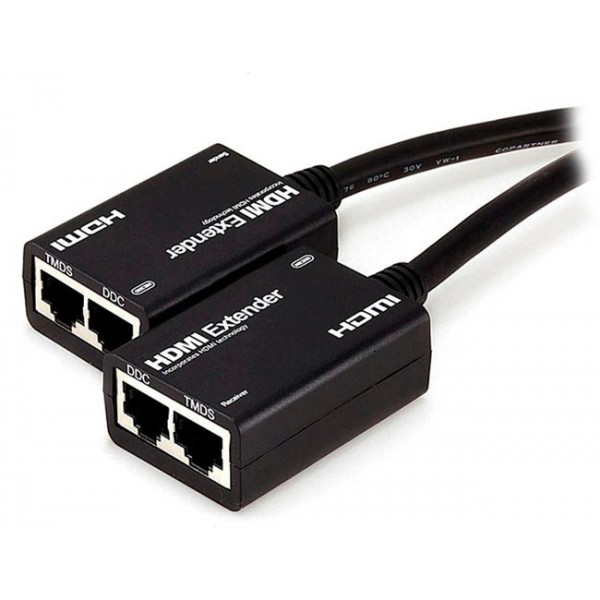

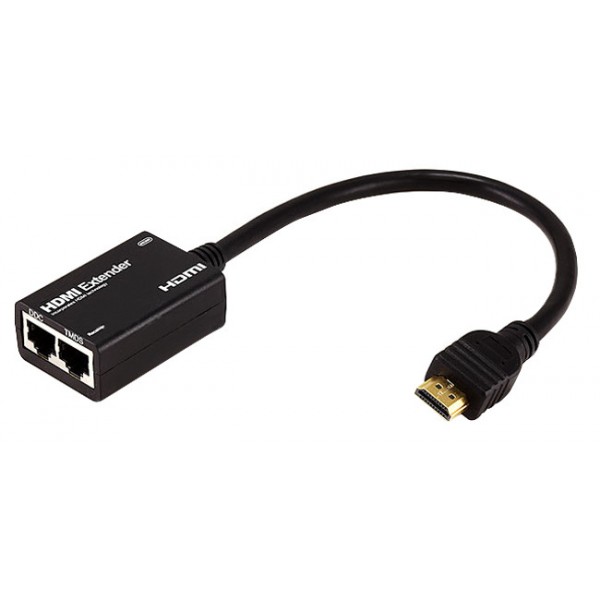

  • Local Unit
    • Compatible with a computer or HDTV video source with HDMI output.
    • One male HDMI connector for source connection.
    • One female RJ45 port for sending high definition video/audio signals.
    • One female RJ45 port for sending DDC signal.
  • Remote Unit
    • One male HDMI connector for display.
    • One female RJ45 port for receiving high definition video/audio signals.
    • One female RJ45 port for receiving DDC signal.
    • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
    • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
  • Dimensions
    • WxDxH: 2.13x1.44x0.84 in (54x37x21 mm) with 8-inch (203-mm) male HDMI cable attached (local and remote unit).
  • Environmental
    • Operating temperature: 32 to 158°F (0 to 70°°C).
    • Storage temperature: 14 to 176°F (-10 to 80°C).
    • Operating and storage relative humidity: 5 to 85% non-condensing RH.
  • Regulatory Approvals
    • CE, FCC, RoHS.
  • Package Includes
    • One HDMI extender transmitter.
    • One HDMI extender receiver.
  • Cables
    • Use CAT5e/6/6a UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors.
      • Extend 1080p resolution up to 100 feet with UTP CAT5e/6 cable.
      • Extend 1080p resolution up to 150 feet with UTP CAT6a cable.
    • Cables not included.

Downloads

Diagram

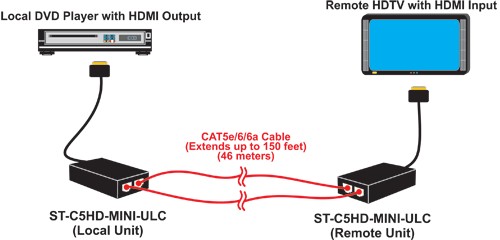

    Application Drawing
