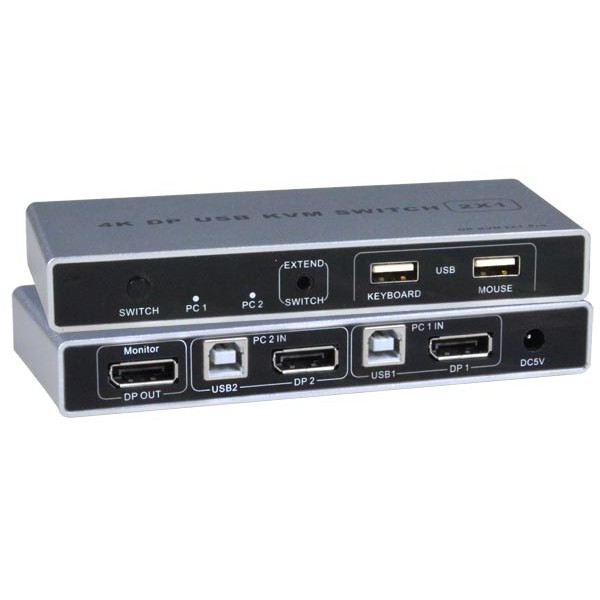

4K DisplayPort USB KVM Switch, 2-Port Click to Zoom

4K DisplayPort USB KVM Switch, 2-Port

Control two Ultra-HD 4Kx2K 60Hz DisplayPort USB computers from one USB keyboard, USB mouse, and 4K DisplayPort 1.2 monitor. Supports Multi-Stream Transport (MST).

More details

Limited stock. All sales final on clearance items.
Clearance

Overview

The 4K DisplayPort USB KVM Switch allows a user to control two Ultra-HD 4Kx2K 60Hz 4:4:4 DisplayPort USB computers with one USB keyboard, USB mouse, and 4K DisplayPort monitor.

  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz YCbCr 4:4:4, and HDTV resolutions to 1080p @144Hz.
  • Control the switch through the front panel button, keyboard commands, or remote switch button.
    • Remote switch button on integrated 6.56-foot cable included.
  • DisplayPort features supported:
    • DisplayPort 1.2
    • Multi-Stream Transport (MST)
    • Up to 30-bit Deep Color
    • RGB, YCbCr 4:4:4, YCbCr 4:2:2
    • Dolby TrueHD, DTS-HD Master, stereo audio.
    • Bandwidth up to 21.6 Gbps
  • HDCP compliant.
  • Supports USB-enabled computers (PC, MAC) with DisplayPort video.
  • MST support allows multiple DisplayPort monitors to be connected together from one monitor port on the switch.
    • Resolution dependent on number of daisy-chained monitors – cannot exceed 21.6 Gbps.
    • Requires DisplayPort 1.2 compliant PC. (MACs not supported)
  • Two USB ports for keyboard and mouse.
  • EDID pass-through supported.

Note: When switching between computers, the screen layout will not be as you left it – all open windows will be pushed to the top left corner of the main display.

Specifications

  • Hosts
    • Two female DisplayPort connectors.
    • Two female USB Type B connectors.
    • Supports USB-enabled computers (PC, MAC) with DisplayPort video.
    • Multiplatform support: Windows 7/8/10, Windows Server 2008/2012/2016/2019, Linux, and MAC OS 9/10. Monitor
  • Monitor
    • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz YCbCr 4:4:4, and HDTV resolutions to 1080p @144Hz.
    • One female DisplayPort connector.
      • Supports Multi-Stream Transport – connect multiple DisplayPort monitors from one monitor port on the switch.
        • Resolution dependent on number of daisy-chained monitors – cannot exceed 21.6 Gbps.
        • Requires DisplayPort 1.2 compliant PC. (MACs not supported)
  • Devices
    • Two female USB Type A ports for keyboard and mouse.
      • Keyboard and mouse are hot-pluggable.
  • Dimensions
    • WxDxH (in): 5.75x2.42x0.79 (146x62x20 mm)
  • Environmental
    • Operating temperature: 23 to 122°F (-5 to 50°C).
    • Operating/storage relative humidity: 5 to 90% non-condensing RH
  • Power
    • Input: 110 to 220 VAC at 50 or 60Hz via AC adapter (included).
    • Output: 5VDC, 1A
    • Power consumption: 1.35 W
  • Cables
    • Interface cables between the computers and the switch are required for proper operation.
      • Two 6-foot male to male DisplayPort interface cables included.
      • Two 4.6-foot male USB Type A to male USB Type B interface cables included.
    • Use DP-xx-MM to connect a DisplayPort monitor up to 25 feet (not included).
    • Supports 4Kx2K resolutions to 6 feet and 1080p to 25 feet.
    • Use DP-HD-xx-MM to connect an HDMI display up to 15 feet.
      • Supports 4Kx2K resolutions to 6 feet and 1080p to 15 feet.
      • Not compatible with MAC.
    • Use DP-DVI-xx-MM to connect a DVI display up to 15 feet.
      • Not compatible with MAC.
    • Use DP-VGA-xx-MM to connect a VGA display up to 15 feet.
      • Not compatible with MAC.
  • Control Methods

    Front Panel

    • Interface LEDs indicate currently selected port.
    • Press the button on the front panel interface to switch between ports.


    Remote Switch Button

    • Female 3.5mm port for connecting included switch button.
      • Cable length: 6.56 feet (2 m).
    • Press the button to switch between ports.


    Keyboard

    • Use keyboard hotkeys to command the switch to select ports.
      • Double press "Scroll Lock" quickly and then press "1" or "2" to switch between ports.

    Downloads

    Buy

    VPI Part NumberNamePriceQuoteBuy
    KEEMUX-DPUSB-2-CLR 4K DisplayPort USB KVM Switch, 2-Port
    $155.00
    $80.00

    Add Item(s) to Quote Add Item(s) to Cart

    Diagram

      Application Drawing
