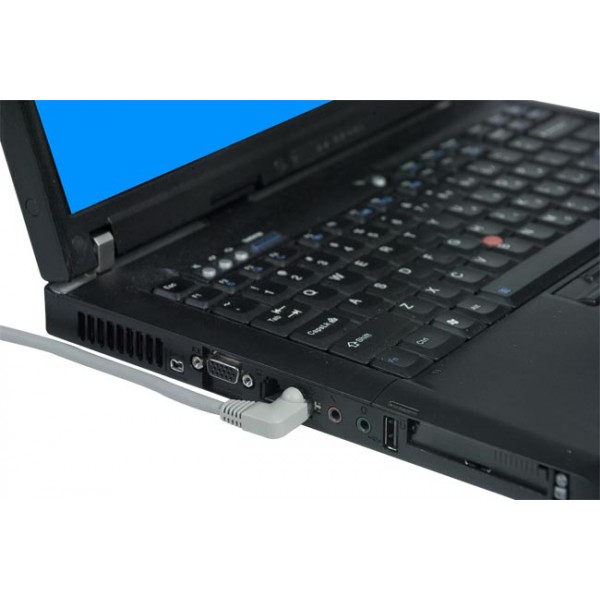

CAT5e Left Angle to Straight Patch Cords

90-degree CAT5e Left Angle to Straight Cables feature RJ45 corner connectors and fit in small confined spaces.

More details

Overview

VPI's Left Angle to Straight CAT5e Patch Cords are assembled with T568B four pair stranded cable, and are ideal for confined spaces. They feature a strain relief boot, preventing excessive bending while reducing stress on the cable.

  • When the angled connector of this cable is plugged into an RJ45 jack with the plug tab on top, the cable extends to the left side.
  • Used to connect your network card to a 10/100/1000Base-T hub or switch.
  • Patch cables and boots are the same color.
  • Boots are snagless.
  • Right angle L plug configuration (side-angled) useful in tight fit situations.
  • Patch cables have stranded copper conductors for flexibility - great for frequent changes that occur at the wall outlet or patch panel.

Specifications

    • 24AWG stranded UTP CAT5e.
    • 8x8 (RJ45) plugs
    • Wired straight through.
    • 150 MHz
    • 15 micron gold plated contacts.
    • Complies with TIA/EIA 568B standard.
    • UL, CSA, RoHS compliant.
  • Environmental
    • Operating temperature: 32 to 167°F (0 to 75℃)
    • Storage temperature: -4 to 185°F (-20 to 85℃)

Downloads

Buy

VPI Part NumberColorLengthPriceQuoteBuy
CAT5E-LAS-6-BLACK Black 6 ft $4.40
CAT5E-LAS-6-WHITE White 6 ft $3.10
CAT5E-LAS-9-BLACK Black 9 ft $3.70
CAT5E-LAS-9-GRAY Gray 9 ft $5.45
CAT5E-LAS-9-WHITE White 9 ft $5.45
CAT5E-LAS-15-GRAY Gray 15 ft $7.85
