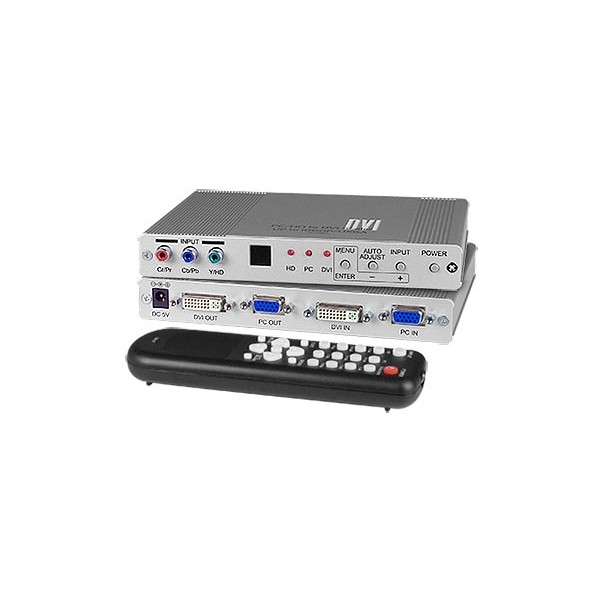

VGA/Component Video/DVI-D Scaler/Converter
Scales and converts VGA, component video and DVI-D signals to a variety of digital DVI and VGA output resolutions.
Limited stock. All sales final on clearance items.
Products
- Adapters
- Audio/Video
- Cables
-
CAT5/5e/6/6a/7/8
- CATx Cables
- RJ45 Plugs
- RJ11 Plugs
- CATx Keystone Jacks
- Locking CAT6 Keystone Jacks, Inline Couplers, & Mount Boxes
- Premium RJ45 Plugs
- RJ45 Connector Covers
- RJ45 Strain Relief Boots
- Cable Testers
- RJ45 Adapters & Couplers
- Patch Panels
- Keystone Wallplates
- Surface Mount Boxes
- Network Cable Tools
- Waterproof CAT5e/6 RJ45 Connectors & Cables
- Connectors
- Fiber Optics
- FireWire
- HDMI
- KVM
- Network Devices
- Power Products
- Security, Sensors
- Surge Protectors
- Telephony
- Tools & Test Equipment
- USB
- Wallplates
- Waterproof/Weatherproof
- Clearance
- Custom Cables & Connectors
Information
Click to Zoom
Overview
The VGA/Component Video/DVI-D Scaler/Converter scales and converts VGA, component video and DVI-D signals to a variety of digital DVI and VGA output resolutions up to 1920x1200.
- Enables you to view video from analog sources on digital HD displays.
- Automatically detects input resolution.
- Output resolution can be selected from the OSD menu or front panel buttons.
- Upscales input video resolution up to 1080p for HDTV displays.
- OSD menu allows you to control color, resolution, brightness, contrast and horizontal/vertical picture adjustment.
- DVI input and output are both HDCP compliant. VGA output is turned off when the DVI input signal is HDCP encrypted.
- Ideal for viewing video from standard definition sources, such as cable or satellite receivers, on a high definition television or projector.
Specifications
- Video Input
- One female 15-pin HD connector for VGA.
- Three RCA jacks for component video.
- One female DVI-I connector for digital DVI input. DVI input is HDCP compliant.
- Video resolution:
- VGA or DVI-D:
- Support 480i, 480p, 576i, 576p, 720p, 1080i and 1080p HDTV resolutions.
- Support VGA(640x480), SVGA(800x600), XGA(1024x768), SXGA(1280x1024), UXGA(1600x1200), WXGA(1366x768), WSXGA(1680x1050) and WUXGA(1920x1200) resolutions.
- Component Video: Supports 480i, 480p, 576i, 576p, 720p, 1080i and 1080p HDTV resolutions.
- VGA or DVI-D:
- Video Output
- One female 15-pin HD connector for VGA.
- One female DVI-I connector for digital DVI output. DVI output is HDCP compliant.
- Video resolution:
- VGA or DVI-D:
- Support 480i, 480p, 576i, 576p, 720p, 1080i and 1080p HDTV resolutions.
- Support VGA(640x480), SVGA(800x600), XGA(1024x768), SXGA(1280x1024), UXGA(1600x1200), WXGA(1366x768), WSXGA(1680x1050) and WUXGA(1920x1200) resolutions.
- Component Video: Supports 480i, 480p, 576i, 576p, 720p, 1080i and 1080p HDTV resolutions.
- VGA or DVI-D:
- Power
- 110 to 230 VAC at 50 or 60 Hz via AC adapter.
- Dimensions
- WxDxH (in): 7x4.9x1
- Control Methods
- Front panel buttons.
- OSD menu accessible via a front panel button.
- IR remote control.
- Package Includes
- VGA/Component Video/DVI-D Scaler/Converter.
- IR remote control.
- VGA cable, male to male, 3.5 ft.
- YPbPr 3-RCA cable, male to male, 3 ft.
- DVI-I cable, male to male, 3 ft.
- AC Power adapter.
- International plug attachments.
- User manual.
Downloads
Buy
| VPI Part Number | Name | Price | Quote | Buy |
|---|---|---|---|---|
| PCHD-DVI-SCALER-CLR | VGA/Component Video/DVI-D Scaler/Converter |
$400.00
$230.00
|
Diagram

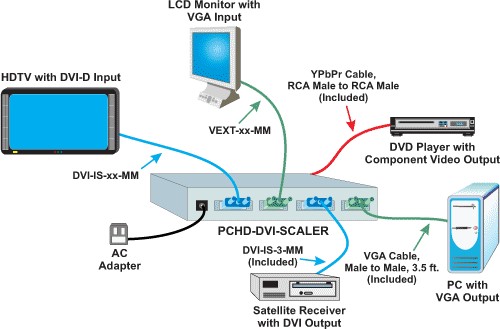

Application Drawing
