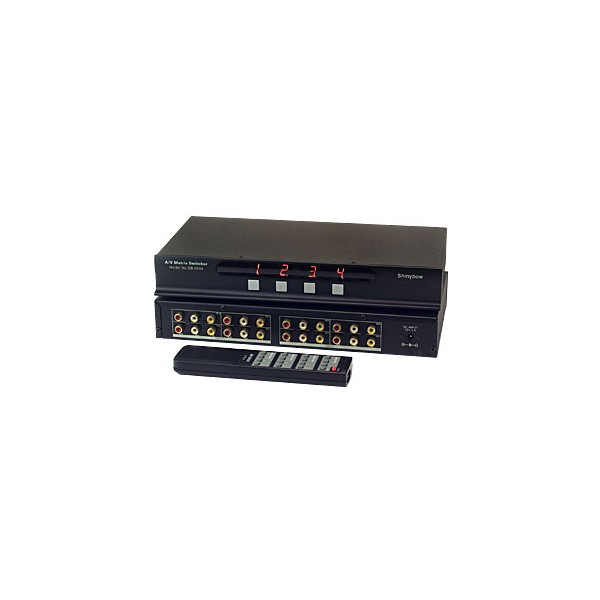

Composite Video/Audio Matrix Switch: 4x4 Click to Zoom

Composite Video/Audio Matrix Switch: 4x4

Switch audio & composite video signals from 4 video sources to 4 displays

More details

Limited stock. All sales final on clearance items.
Clearance

Overview

The Composite Video/Audio Matrix Switch routes audio and video from four composite video sources to four displays (projectors, monitors, etc.) The video signal from a single video source can be routed to numerous displays.

  • Supports HDTV resolutions to 567i.
  • Eliminate duplicate purchases of expensive equipment.
  • No loss of signal.
  • Extend enjoyment of your A/V equipment to multiple rooms.

Specifications

  • Power
    • 110 to 220 VAC at 50 or 60 Hz via AC adapter.
  • Dimensions
    • WxDxH (in): 12x6.8x1.75
  • Inputs
    • Four RCA composite video jacks.
      • Supported resolutions: 480i, 567i
    • Four sets (R&L) of RCA audio jacks.
    • Audio input: Stereo (R&L), 100K Ohm.
  • Outputs
    • Four RCA composite video jacks.
      • Supported resolutions: 480i, 567i.
    • Four sets (R&L) of RCA audio jacks.
    • Video output: +1Vpp, 75 Ohm.
    • Audio output: Stereo (R&L), 40K Ohm.
    • Video bandwidth: 10 MHz.
    • Distortion:
      • Video: <1.2dB
      • Audio: <0.6dB
    • Video crosstalk: -60dB.
    • Channel isolation: <50dB.
    • Signal to noise ratio: <60dB
  • Control Methods
    • Front panel buttons allow you to make and break connections.
    • LED display shows which input device is being used by each output device.
    • Infrared (IR) remote control.
  • Package Includes
    • Composite video/audio matrix switch.
    • AC Adapter.
    • Infrared remote control with 2 AA batteries.
    • 6-foot RCA audio and composite video combination cable.
    • User Manual

Downloads

Buy

VPI Part NumberNamePriceQuoteBuy
MTX-4X4-CVA-CLR Composite Video/Audio Matrix Switch: 4x4
$213.00
$65.00

Add Item(s) to Quote Add Item(s) to Cart

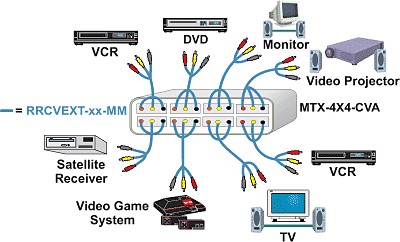

Diagram

    Application Drawing
