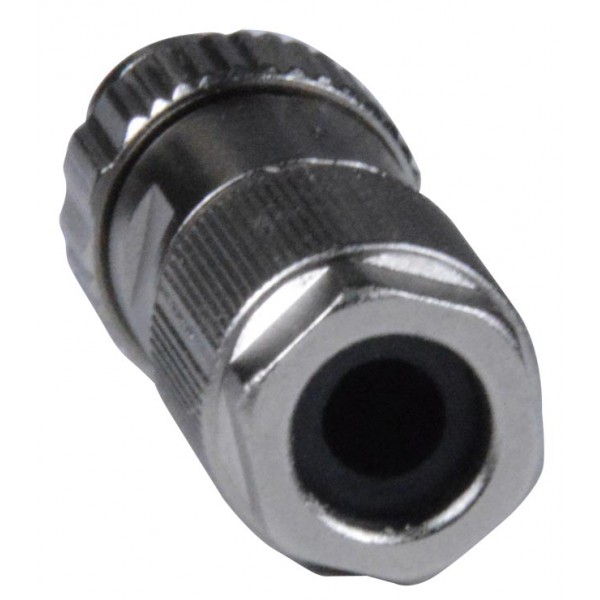

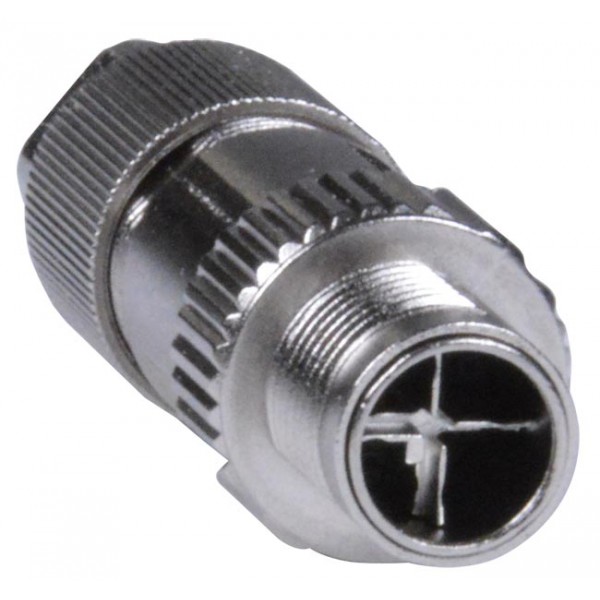

M12 8-Pin 10Gbps Field Assembly Circular Shielded Waterproof Connector, Male, X-Coded, Cable Side

M12 10Gbps male circular connectors are used in harsh and industrial environments for high speed Ethernet applications.

More details

Overview

The M12 10Gbps Waterproof Male Cable Side Connectors configure four signal pairs with a cross shaped shield to create connection with greater protection against interference and cross talk. The field installable plug reaches optimal signal performance over CAT6/6a/7 cables. The compact, rugged connectors have complete 360-degree shielding, are vibration-proof and corrosion resistant, and are IP67-rated for harsh industrial or outdoor environments.

The male cable side connectors pair with a panel mounted female connector, M12XC-8PWTP-10G-PS. Cable side connectors are designed for soldering into a cable assembly.

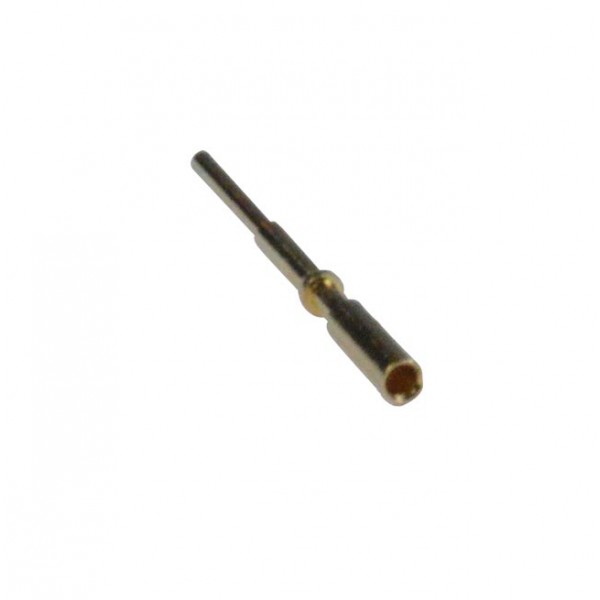

  • 8 pins included require crimp termination using a 24/26 AWG wire.
  • Supports network data rate speeds up to 10gbps over CAT6/6a/7 cable.
  • Connector: Male, X Coded
  • Number of positions: 8
  • Screw lock connections.
  • Ideal for up to 10 Gigabit Ethernet, device level connectivity, factory automation, and process industry applications.
  • Gold-plated contacts.
  • IP67 rating for harsh environments.
  • Package include: One Field Assembly Connector and 8 crimp on pins
  • Compatible with M12XC-8PWTP-10G-PS

Specifications

    • Male, X Coded
    • Wire gauge: 24/26 AWG
    • Waterproof rating: IP67
    • Regulatory approvals: CE, RoHS
  • Dimensions
    • WxDxH in: 0.65x0.65x1.92 (16.4x16.4x48.72 mm)
    • Weight: 0.0532 lbs
  • Environmental
    • Operating temperature:-4 to 176°F (-20 to 80°C).

Buy

VPI Part NumberNamePriceQuoteBuy
M12XC-8PWTP-10G-FA M12 8-Pin 10Gbps Field Assembly Circular Shielded Waterproof Connector, Male, X-Coded, Cable Side $57.00
