| 3/5 Port Switch | 8-Port Switch |
| |
| HDMI Switch, 3-Port/5-Port |
| Share one HDMI display among multiple HDMI sources |
|
|
|
SE-HDMI-3-LC
3-port $80
SE-HDMI-5-LC
5-port $95 |
| Features & Applications |
| The HDMI video switch routes digital video and audio signals from multiple HDMI sources to one HDMI display. The switch can be controlled via the front panel buttons or IR remote control. |
- Eliminate duplicate purchases of expensive high definition displays.
- Supports crystal clear HDTV resolutions to 1080p and computer resolutions to 1920 x 1200.
- Plug and play functionality - no new software or drivers required.
- Eliminates the need to disconnect and then reconnect multiple HDMI sources,.
|
- Supports cable lengths of 65 ft. on the inputs and 82 ft. on the output.
- Compliant with HDMI 1.3a, HDCP 1.1 and DVI 1.0 standards.

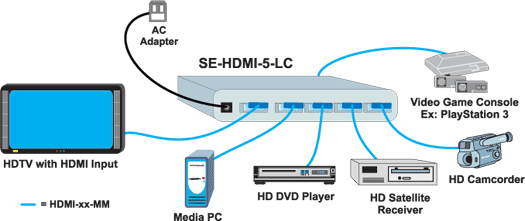

- Ideal solution for connecting multiple HD media devices such as video game consoles, media PCs, set top boxes, DVRs, DVD players etc to your home theater systems.
|
| Specifications |
|
Video
- Input: Female HDMI Type A connectors.
- Output: Female HDMI
Type A connector.
- Input/Output Resolution :
- Supports 480i, 480p, 720i, 720p, 1080i, and 1080p resolution for HDTV displays.
- Supports up to 1920x1080 resolution for monitors.
- Compliant with HDMI 1.3a, HDCP 1.1 and DVI 1.0 standards.
|
Control Methods
- Front panel button with LED indication of port selection.
- IR remote control for easy port selection.
Power
- 100 to 240 VAC at 50 or 60 Hz via AC adapter
DimensionsPackage Includes
- HDMI Switch
- AC power adapter
- User manual
|
| |
 |
| |
| HDMI Switch, 8-Port |
| Switch eight HDMI sources between one HDMI display |
|
|
|
SE-HDMI-8-LC
8-port $280,  order below |
| Features & Applications |
| The HDMI video switch routes digital video and audio signals from multiple HDMI sources to one HDMI display. The switch can be controlled via the front panel buttons, IR remote control or RS232 commands. |
- Eliminate duplicate purchases of expensive high definition displays.
- Supports crystal clear HDTV resolutions up to 1080p and computer resolutions up to 1920 x 1080.
- Plug and play functionality - no new software or drivers required.
- Eliminates the need to disconnect and then reconnect multiple HDMI sources.
|
- Compliant with HDMI 1.1, HDCP 1.1 and DVI 1.0 standards.
- Ideal solution for connecting multiple HD media devices such as video game consoles, media PCs, set top boxes, DVRs, DVD players etc. to your home theater systems.
|
| Specifications |
|
Video
- Input: Female HDMI Type A connectors.
- Output: Female HDMI
Type A connector
- Input/Output Resolution :
- Supports 480i, 480p, 576i, 576p, 720p, 1080i, and 1080p resolution for HDTV displays.
- Supports up to 1920x1080 resolution for monitors.
- Compliant with HDMI 1.1, HDCP 1.1 and DVI 1.0 standards.
|
Control Methods
- Front panel buttons with LED indication of port selection.
- IR remote control for easy port selection.
- Via female DB9 RS232 serial port using HyperTerminal. Requires straight-through wired RS-232 cable.
Power
- 100 to 240 VAC at 50 or 60 Hz via AC adapter
DimensionsPackage Includes
- HDMI Switch
- AC power adapter
- User manual
|
|
