| 2 Port Splitter | 4/8 Port Splitter |
| |

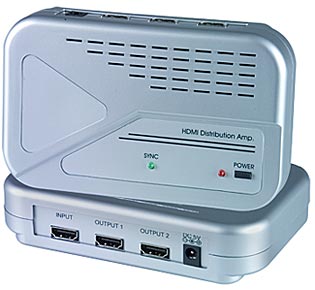

| HDMI Splitter, 2-Port |
| Distributes one HDMI video signal to two HDMI displays simultaneously |
VOPEX-HDMI-2-LC
2-port $100
order below |
| Features & Applications |
| The HDMI splitter enables two HDMI displays to be driven by a single HDMI source. The same crystal clear image is displayed on all monitors simultaneously. |
- Connect two HDMI displays to a single HDMI source such as a DVD player, game console, HD set-top box etc.
- Supports crystal clear HDTV resolutions up to 1080p and computer resolutions up to 1920 x 1080.
- Plug and play functionality - no new software or drivers required.
|
- Compliant with HDMI 1.2, HDCP 1.1 and DVI 1.0 standards.
- Ideal solution for home theaters, conferences, conventions, restaurants, schools, corporate training and presentations etc.
|
| Specifications |
|
Video
- Input: One female HDMI Type A connector.
- Output: Two female HDMI Type A connectors.
- Input/Output Resolution :
- Supports 480i, 480p, 576i, 576p, 720p, 1080i, and 1080p resolution for HDTV displays.
- Supports up to 1920x1080 resolution for monitors.
- Compliant with HDMI 1.2 and DVI 1.0 standards.
|
Control
- Front panel buttons with LED indication of port selection.
Power
- 100 to 240 VAC at 50 or 60 Hz via AC adapter.
DimensionsPackage Includes
- HDMI splitter
- HDMI cable, male to male, 3 ft
- AC power adapter
- User manual
|
| |
 |
| |
| HDMI 1.3b Splitter, 4-Port/8-Port |
| Distributes one HDMI video signal to multiple HDMI displays simultaneously |
|
|
|
VOPEX-HDMI-4-LC
4-port
$195
VOPEX-HDMI-8-LC
8-port $488, order below |
| Features & Applications |
| The HDMI splitter enables up to eight HDMI displays to be driven by a single HDMI source. The same crystal clear image is displayed on all monitors simultaneously. |
- Connect up to eight HDMI displays to a single HDMI source such as a DVD player, game console, HD set-top box etc.
- Supports crystal clear HDTV resolutions up to 1080p and computer resolutions up to 1920 x 1200.
- Plug and play functionality - no new software or drivers required.
|
- Compliant with HDMI 1.3b,
HDCP 1.1 and DVI 1.0 standards.
- Ideal solution for home theaters, conferences, conventions, restaurants, schools, corporate training and presentations etc.
|
| Specifications |
|
Video
- Input: One female HDMI Type A connector.
- Output: Female HDMI Type A connectors.
- Input/Output Resolution :
- Supports 480i, 480p, 720i, 720p, 1080i, and 1080p resolution for HDTV displays.
- Supports up to 1920x1200 resolution for monitors.
- Compliant with HDMI 1.3b,
HDCP 1.1 and DVI 1.0 standards. |
Power
- 100 to 240 VAC at 50 or 60 Hz via AC adapter.
Dimensions WxDxH (in)
- 4 port: 7.0x4.5x0.9
- 8 port: 12.0x6.2x0.9
Package Includes
- HDMI splitter
- AC power adapter
- HDMI cable, male to male, 3 ft
- User manual
|
|
