 VPI Introduces Dual Link DVI USB KVM Switch
Control Two DVI computers using a USB keyboard, USB mouse, and a dual-link DVI flat panel display.

VPI’s Dual Link DVI USB KVM Switch is designed to control two computers with a dual-link DVI display, USB keyboard and USB mouse. It is equipped with a USB 2.0 hub as well as FireWire ports that allow the switching and sharing of USB 2.0 and FireWire devices between the two computers. The Switch also supports speaker and microphone switching.

For more information:
Email: sales@vpi.us
Call: 330-562-2622

 Dual Link DVI USB KVM Switch with FireWire Support

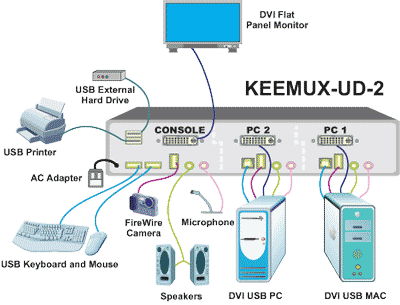

KVM Switcher allows one user to access two DVI-enabled PCs from one USB keyboard, USB mouse and DVI monitor.
DVI USB KVM Switch with FireWire connectors and built-in USB hub

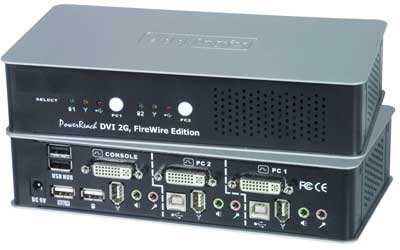

KEEMUX-UD-2 (Front & Back)
$265.00, order below

Features & Applications
The DVI USB KVM Switch allows one user to access two dual link DVI-enabled PCs with just one USB keyboard, USB mouse, and DVI monitor. The switch also includes a USB 2.0 two-port hub and FireWire connectors for high-speed sharing of scanners, storage devices, web-cams, camcorders, and other multimedia devices without rebooting.
  • Compatible with DVI-enabled USB-style computers.
  • Built-in audio ports for independent or simultaneous sharing and switching of speakers and microphones.
  • Connected devices can be used independently.
  • Supports automatic USB/FireWire device detection.
Specifications
Hosts
  • One female DVI-I Dual Link connector.
  • Two female USB Type A connectors for keyboard and mouse.
  • Two female USB 2.0 Type A connectors for the USB hub.
  • One female 3.5mm audio jack.
  • One female 3.5mm microphone jack.
  • One female FireWire 1394a 6-pin connector.
  • Compatible with DVI-enabled USB-style computers.
  • Multiplatform support: Windows 2000/XP/Vista/Server 2000/2003/2008, and MAC OS 9/10.
DVI Flat Panel Display Monitor
  • One female DVI-I Dual Link connector.
  • Crisp & clear 2560x1600 resolution.
Devices
  • Two female USB Type A connectors.
  • Compatible with most USB keyboards and mice.
  • One female FireWire 1394a 6-pin connector.



Control
  • Keyboard hotkey commands.
  • Front panel buttons with LED indication of port selected.
Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter (included).
Dimensions
  • WxDxH (in): 8.1x4.2x1.8
Package Includes
  • One DVI USB KVM Switch.
  • Two DVI-I male-male video cables.
  • Two FireWire 6-pin male-male 1394a cables.
  • Two USB Type A male to Type B male cables.
  • Two audio/mic cables.
  • Power adapter.
  • Quick Installation Guide.
Share, swap, and switch between 2 computers
All items are in stock!
Dual Link DVI USB KVM Switch with FireWire Support
Part # Description Price $ # to Buy
KEEMUX-UD-2 Dual Link DVI USB KVM Switch 265
