| 2 Port Switch | 4 Port Splitter |
| |

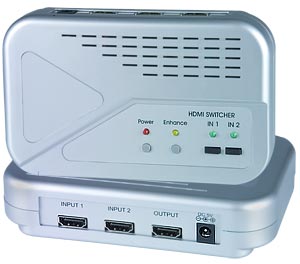

| HDMI Switch, 2-Port |
| Share one HDMI display among two HDMI sources |
|
SE-HDMI-2-LC-CLR 2-port $70.00 $50
order below Limited stock.
All sales final on clearance items. |
| Features & Applications |
| The HDMI video switch enables digital video and audio signals from two HDMI sources to be connected to one HDMI display. |
- Eliminate duplicate purchases of expensive high definition displays.
- Supports crystal clear HDTV resolutions up to 1080p and computer resolutions up to 1920 x 1080.
- Plug and play functionality - no new software or drivers required.
- Eliminates the need to disconnect and then reconnect multiple HDMI sources.
|
- Compliant with HDMI 1.2 HDCP 1.1 and DVI 1.0 standards.
- Ideal solution for connecting multiple HD media devices such as video game consoles, media PCs, set top boxes, DVRs, DVD players etc.
|
| Specifications |
|
Video
- Input: 2 female HDMI Type A connectors
- Output: One female HDMI
Type A connector
- Input/Output Resolution :
- Supports 480i, 480p, 576i, 576p, 720p, 1080i, and 1080p resolution for HDTV displays.
- Supports up to 1920x1080 resolution for monitors.
- Compliant with HDMI 1.2 HDCP 1.1 and DVI 1.0 standards.
|
Control Methods
- Front panel buttons with LED indication of port selection.
Power
- 100 to 240 VAC at 50 or 60 Hz via AC adapter
Dimensions WxDxH (in)
Package Includes
- HDMI Switch
- AC power adapter
- User manual
|
| |
 |
| HDMI Splitter, 4-Port |
| Distributes one HDMI video signal to four HDMI displays simultaneously |
| VOPEX-HDMI-4-LC-CLR 4-port $250.00 $150
order below Limited stock.
All sales final on clearance items. |
| Features & Applications |
| The HDMI splitter enables up to four HDMI displays to be driven by a single HDMI source. The same crystal clear image is displayed on all monitors simultaneously. | - Connect up to four HDMI displays to a HDMI source such as a DVD player, game console, HD set-top box etc.
- Supports crystal clear HDTV resolutions up to 1080p and computer resolutions up to 1920 x 1080.
- Plug and play functionality - no new software or drivers required.
- Eliminates the need to disconnect and then reconnect multiple HDMI sources.
|
- Compliant with HDMI 1.2 HDCP 1.1 and DVI 1.0 standards.
- Ideal solution for home theaters, conferences, conventions, restaurants, schools, corporate training and presentations etc.
|
| Specifications |
|
Video
- Input: Four female HDMI Type A connectors.
- Output: One female HDMI
Type A connector
- Input/Output Resolution :
- Supports 480i, 480p, 576i, 576p, 720p, 1080i, and 1080p resolution for HDTV displays.
- Supports up to 1920x1080 resolution for monitors.
- Compliant with HDMI 1.2 HDCP 1.1 and DVI 1.0 standards.
|
Control Methods
- Front panel buttons with LED indication of port selection.
Power
- 100 to 240 VAC at 50 or 60 Hz via AC adapter
Dimensions
Package Includes
- HDMI Splitter
- HDMI cable, male to male, 3 ft
- AC power adapter
- User manual
|
| |
 |
| |
|
